CE5855-24T4S2Q-EI Huawei Switch 24 Port GE RJ45 / 4 Port 10G SFP+ / 2 Port 40G QSFP+ PN02350TJC
CE5855-24T4S2Q-EI Huawei Switch 24-Port GE RJ45.4-Port 10G SFP+.2-Port 40G QSFP+,PN02350TJC
CE5855-24T4S2Q-EI Overview
Huawei CE5855-24T4S2Q-EI-F provides 24 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers.
Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system).
CE5855-24T4S2Q-EI-B: CE5855-24T4S2Q-EI Switch(24-Port GE RJ45.4-Port 10G SFP+.2-Port 40G QSFP+.2*FAN Box.Port-side Intake.Without Power Module)
CE5855-24T4S2Q-EI-F : CE5855-24T4S2Q-EI Switch(24-Port GE RJ45.4-Port 10G SFP+.2-Port 40G QSFP+.2*FAN Box.Port-side Exhaust.Without Power Module)
CE5855-24T4S2Q-EI : CE5855-24T4S2Q-EI Switch(24-Port GE RJ45.4-Port 10G SFP+.2-Port 40G QSFP+.Without Fan and Power Module)
CE5855-24T4S2Q-EI Specification
| Product Code | CE5855-24T4S2Q-EI-F |
| Software Version | V100R005C10 and later |
| Base-T Ports | 24 |
| SFP+ Ports | 4 |
| QSFP+ Ports | 2 |
| Switching Capacity | 288 Gbit/s |
| Forwarding Rate | 215 Mpps |
| Power module type | Pluggable AC or DC power module, 1+1 backup supported |
| Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
| Maximum power consumption | 75W |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.1 kg (17.8 lb) |

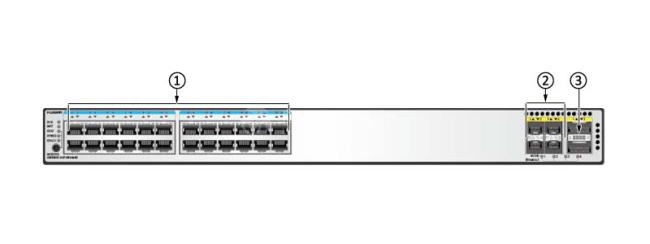

Note:
|
① |
24 X 10/100/1000BASE-T Ethernet electrical ports |
|
② |
4 X 10GE SFP+ Ethernet optical ports |
|
③ |
2 X 40GE QSFP+ Ethernet optical ports |

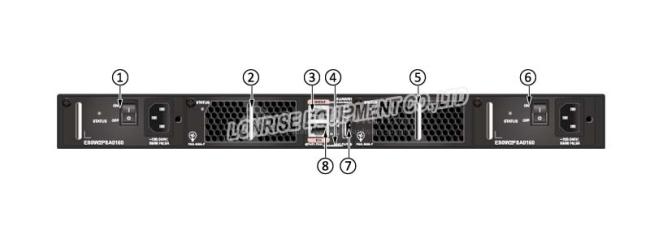

Note:
| ① | Power supply slot 1 |
| ② | Fan slot 1 |
| ③ | Console port |
| ④ | Barcode label |
| ⑤ | Fan slot 2 |
| ⑥ | Power supply slot 2 |
| ⑦ | USB port |
| ⑧ | ETH management port (RJ45) |
