Cloud Engine S5732-H48S6Q Huawei Switch 44× GE SFP 4 × 10 GE SFP+ Ports 6 × 40 GE QSFP Ports
CloudEngine S5732-H48S6Q 44× GE SFP ,4 × 10 GE SFP+ ports, 6 × 40 GE QSFP ports
S5732-H48S6Q Overview
CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.
S5732-H48S6Q Specification

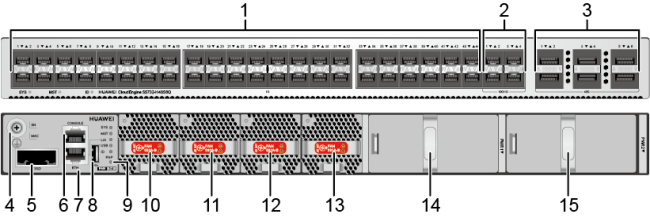

| 1 |
Forty-four 1000BASE-X ports |
2 |
Four 10GE SFP+ ports |
| 3 |
Six 40GE QSFP+ optical ports Applicable modules and cables:
NOTE:
A QSFP+ optical port cannot be split into four 10GE ports. |
4 |
Ground screw NOTE:
It is used with a ground cable.
|
| 5 |
SSD card slot NOTE:
This slot is reserved for future use. |
6 | One console port |
| 7 | One ETH management port | 8 | One USB port |
| 9 |
PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
10 |
Fan module slot 1 NOTE:
Applicable fan module: FAN-031A-B Fan Module |
| 11 |
Fan module slot 2 NOTE:
Applicable fan module: FAN-031A-B Fan Module |
12 |
Fan module slot 3 NOTE:
Applicable fan module: FAN-031A-B Fan Module |
| 13 |
Fan module slot 4 NOTE:
Applicable fan module: FAN-031A-B Fan Module |
14 |
Power module slot 1 NOTE:
Applicable power module: 600 W AC Power Module (PAC600S12-CB) |
| 15 |
Power module slot 2 NOTE:
Applicable power module: 600 W AC Power Module (PAC600S12-CB) |
- | - |
| Product Model | CloudEngine S5732-H24S6Q | CloudEngine S5732-H48S6Q |
| Forwarding Performance | 360 Mpps | 420 Mpps |
| Switching Capacity | 2.4 Tbit/s | 2.4 Tbit/s |
| Fixed Ports | 20 × GE SFP ports, 4 × 10GE SFP+ ports, 6 × 40GE QSFP+ ports | 44 × GE SFP ports, 4 × 10GE SFP+ ports, 6 × 40GE QSFP+ ports |
| Wireless Services | Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
|
| iPCA | Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device level | |
| Super Virtual Fabric (SVF) | Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients |
|
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
|
| Security | Encrypted communication analytics (ECA) Threat trap technology Network-wide security collaboration |
|
| Interoperability | VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
|
