CE5880-48T6Q-EI Huawei Switch 44 GE RJ45 4 10GE RJ45 6 40GE QSFP+ With New Original
CE5880-48T6Q-EI Huawei Switch 44 GE RJ45, 4 10GE RJ45, 6 40GE QSFP+
CE5880-48T6Q-EI Overview
Huawei CloudEngine 5800 (CE5800 for short) series switches are next-generation, high-density gigabit Ethernet switches designed for data centers and high-end campus networks. CE5800 series switches have an advanced hardware architecture design with the industry's highest density of GE access ports. They are the industry's first gigabit access switches that provide 40GE uplink ports. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800/CE8800/CE7800/CE6800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.

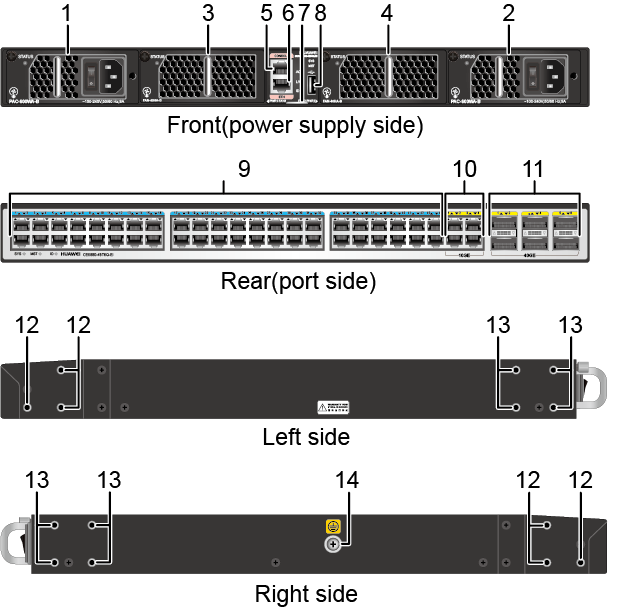

CE5880-48T6Q-EI Specification
| 1 |
Power supply slot 1 Applicable power modules:
|
2 |
Power supply slot 2 Applicable power modules:
|
| 3 |
Fan slot 1 Applicable fan modules:
|
4 |
Fan slot 2 Applicable fan modules:
|
| 5 | Console port | 6 | ETH management port (RJ45) |
| 7 |
Barcode label
|
8 | USB port |
| 9 | Forty-four 100/1000BASE-T Ethernet electrical ports | 10 | Four 10GBASE-T Ethernet electrical ports |
| 11 |
Six 40GE QSFP+ Ethernet optical ports Applicable modules and cables:
|
12 | Three port-side mounting holes for mounting brackets |
| 13 | Four power-supply-side mounting holes for mounting brackets | 14 | Ground screw |
