S6720-56C-PWH-SI-AC Huawei Network Switch 32 Gigabit Ports 16x100M/1/2.5/5/10G ports 4 10 Gig SFP+ PoE++
Price:
Negotiatable
MOQ:
1 UNIT
Delivery Time:
1-2 DAYS
Brand:
HUAWEI
Product Description
S6720-56C-PWH-SI-AC Huawei Network Switch
S6720-56C-PWH-SI-AC Huawei Network Switch 32 Gigabit Ports,16x100M/1/2.5/5/10G ports,4 10 Gig SFP+,PoE++
S6720-56C-PWH-SI-AC Overview
S6720-56C-PWH-SI Bundle(32 Ethernet 10/100/1000 ports,16 Ethernet 100M/1/2.5/5/10G ports,4 10 Gig SFP+,PoE++,with 1 slot,1*AC power)
S6720-56C-PWH-SI-AC Specification

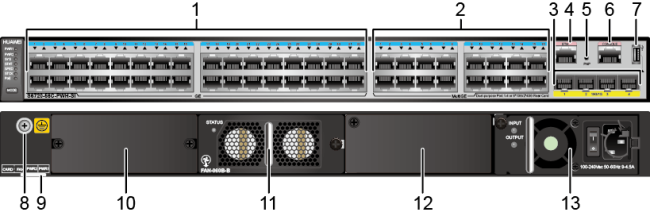

| 1 | Thirty-two PoE++ 10/100/1000BASE-T ports | 2 | Sixteen PoE++ 100M/1000M/2.5G/5G/10G BASE-T ports (MultiGE port) |
| 3 | Four 10GE SFP+ ports
Applicable modules and cables:
|
4 | One ETH management port |
| 5 | One PNP button | 6 | One console port |
| 7 | One USB port | 8 | Ground screw |
| 9 | ESN label | 10 | Rear card slot |
| 11 | Fan slot | 12 | Power module slot 2 |
| 13 | Power module slot 1 | - | - |
|
Item |
Description |
|---|---|
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 23.9 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) | 44.4 mm x 442.0 mm x 420.0 mm (1.75 in. x 17.4 in. x 16.5 in.) |
| Weight (with packaging) | 9.3 kg (20.5 lb) |
| Stack ports | Any MultiGE, 10GE SFP+, or 40GE QSFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
| Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) |
|
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 91.01 W (not providing the PoE function, without card) |
| Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 60.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 98010727 |
