S5720-36C-EI-DC 28 Ethernet 10/100/1000 Ports 4 Of Which Are Dual-Purpose 10/100/1000 Or SFP 4 10 Gig SFP+ 1 Interface
-
Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.
Quick Specs
Figure 1 shows the appearance of S5720-36C-EI-DC.
Table 1 shows the Quick Specs.
Product Code S5720-36C-EI-DC Extended Slot One extended slot supporting a service subcard or stack card Switching Capacity 598 Gbit/s Forwarding Performance 132 Mpps Fixed Interfaces 28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports Power Supply Double hot-swappable DC power supplies, one AC/DC power module is configured by default Memory (RAM) 2 GB Flash 340 MB Dimensions (W x D x H) 442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.) Weight Empty: ≤ 8 kg (17.64 lb)
Fully loaded: ≤ 12 kg (26.46 lb)
Product Details

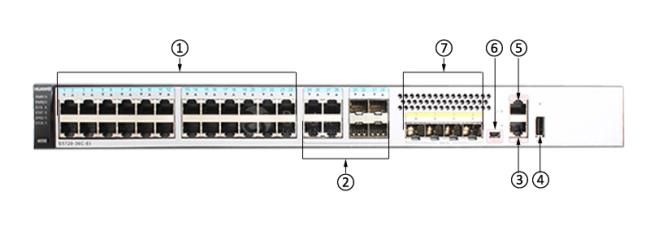

Figure 2 shows the front panel of S5720-36C-EI-DC.
![S5720-36C-EI-DC Front Panel]( "S5720-36C-EI-DC Front Panel")
Note:
① Twenty-four 10/100/1000BASE-T ports ② Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) ③ ETH management port ④ One USB port ⑤ One console port ⑥ One mini USB port ⑦ Four 10GE SFP+ ports Figure 3 shows the back panel of S5720-36C-EI-DC.
Note:
① Ground screw ② ESN label ③ Rear card slot ④ Fan slot ⑤ Power module slot 2 ⑥ Power module slot 1 The Modules, Cards
Table 2 shows the recommended elements for the S5720-36C-EI-DC.
Model Description FE-SFP Optical Transceiver SFP-FE-SX-MM1310 Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) eSFP-FE-LX-SM1310 Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) S-SFP-FE-LH40-SM1310 Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) GE-SFP Optical Transceiver eSFP-GE-SX-MM850 Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) S-SFP-GE-LH40-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) S-SFP-GE-LH40-SM1550 Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) 10G-SFP+ Optical Transceiver SFP-10G-USR 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) OMXD30000 Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) OSX010000 Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) GE Copper Transceiver SFP-1000BaseT Electrical Transceiver, SFP, GE, Electrical Interface Module(100m, RJ45) 10GE Interface Card ES5D21X02T01 2 10 Gig RJ45 Interface Card(used in S5720EI series) ES5D21X02S01 2 10 Gig SFP+ Interface Card(used in S5720EI series) Stack Card Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series) Compare to Similar Items
Table 3 shows the comparison of S5720-36C-EI-DC and S5720-32X-EI-AC.
Product Code S5720-36C-EI-DC S5720-32X-EI-AC Switching Capacity 598 Gbit/s 598 Gbit/s Forwarding Performance 132 Mpps 102 Mpps Fixed Interfaces 28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports 24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 x 10 Gig SFP+ Extended Slot One extended slot that supports an uplink interface card or private stack card NA Dimensions (W x D x H) 442 mm x 420 mm x 44.4 mm 442 mm x 220 mm x 43.6 mm Front Power Input No Yes Get more information
Do you have any question about the S5720-36C-EI-DC?
S5720-36C-EI-DC Specification
S5720-36C-EI-DC Specification
Switching Capacity 598 Gbit/s Forwarding Performance 132 Mpps Fixed Ports 28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+ Extended Slot One extended slot supporting a service subcard or stack card DRAM and Flash Memory SDRAM: 2 GB
Flash: 340 MB
MAC Address Table 64k Jumbo Frame 12K VLAN 4k IP Routing Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy Security Hierarchical user management and password protection
AAA authentication
DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI
Port isolation, port security, and sticky MAC
NAC and user management based on user groups
Limit on the number of learned MAC addresses
CPU defense
Blacklist and whitelist
MACSec ready
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software and patching on the client
One-click and automatic delivery of service configurations
Independent running clients
Interoperability VBST (Compatible with PVST/PVST+/RPVST)
LNP (Similar to DTP)
VCMP (Similar to VTP)
Front Power Input NA Energy saving 802.3az Energy Efficient Ethernet (EEE) supported Typical Power Consumption 39.5W Input Voltage Rated voltage range: –48V to –60V
Maximum voltage range: –36V to –72VManagement and Maintenance iStack
Virtual cable test
SNMPv1/v2c/v3
RMON/RMON2
Web-based network management system
System logs and multi-level alarms
sFlow
LLDP/LLDP-MED
Secure Copy Protocol (SCP), TFTP, FTP
Store dual software images and configuration files
802.3az Energy Efficient Ethernet (EEE)Surge Protection Surge protection capability of service ports: 6 kV Interoperability VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)
Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP)
VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)Operating Environment Operating temperature:
Zero to 1,800m altitude: 0°C to 45°C
1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every altitude increase of 220m.
Relative humidity: 5% to 95% (non-condensing)Dimensions (W x D x H) 442 mm x 420 mm x 44.4 mm ![]()
![]()
