QSFP-40G-CU3M, Huawei QSFP+ High Speed Direct-attach Cable, 40G/3m/Indoor Use
Huawei QSFP-40G-CU3M Overview
The Huawei QSFP-40G-CU3M is a high-speed direct-attach cable (DAC) for 40G connections, designed for indoor use. This 3-meter QSFP+ cable offers a reliable solution for short-distance, high-speed data transmission within data centers or enterprise networks, ensuring efficient connectivity between devices with QSFP+ interfaces.
Quick Specs

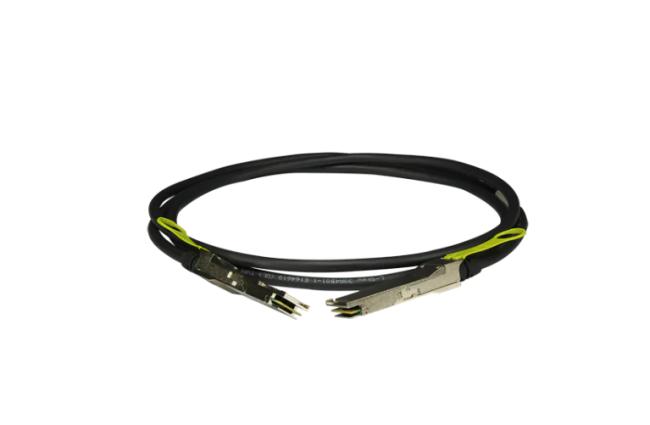

Figure 1 shows the appearance of QSFP-40G-CU3M.
Table 1 shows the Quick Specs.
|
Product Code |
QSFP-40G-CU3M |
|
Part Number |
02310MUH |
|
Description |
QSFP+,40G,High Speed Direct-attach Cables,3m,QSFP+38M,CC8P0.32B(S),QSFP+38M,Used indoor |
|
Huawei Genuine |
QSFP-40G-CU3M |
|
Connector Type |
QSFP+ to QSFP+ |
|
Cable Type |
Passive Copper Cable |
|
Cable Length |
3m (9.84ft) |
|
Temperature |
0°C to 70°C (32°F to 158°F) |
|
Protocols |
40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
|
Max Data Rate |
40Gbps |
|
Wire AWG |
28AWG |
|
Jacket Material |
PVC(OFNR) |
|
Product Series |
CE7800 |
|
UOM |
PCS |
|
Pack Weight(kg) |
0.65 |
|
Pack Volume(m^3) |
0.005159 |
Huawei QSFP-40G-CU3M Specification
QSFP-40G-CU3M Specifications |
|
| Brand | Huawei |
| Product Name | QSFP-40G-CU3M |
| Product Type | High Speed Direct-attach Cable |
| Connector Type | QSFP+ |
| Maximum Data Rate Supported | 40 Gbps |
| Length | 3 meters |
| Compatibility | Compliant with QSFP+38M |
| Operating Environment | Indoor Use |
| Cable type | Direct Attach Copper |
| Cable Component | CC8P0.32B(S) |
| Compliance | IEEE 802.3ba |
| Connector Material | Metal |
| Cable Jacket | PVC |
| Temperature Range | 0°C to 70°C |
| Power Consumption | Maximum 1.5W per end |
| Halogen-Free | Yes |
| Impedance | 100 Ohms |
| Data Transmission | Full-Duplex |
| Application | Data Centers, High-Performance Computing Networks |
| Certifications | RoHS, CE, FCC |
