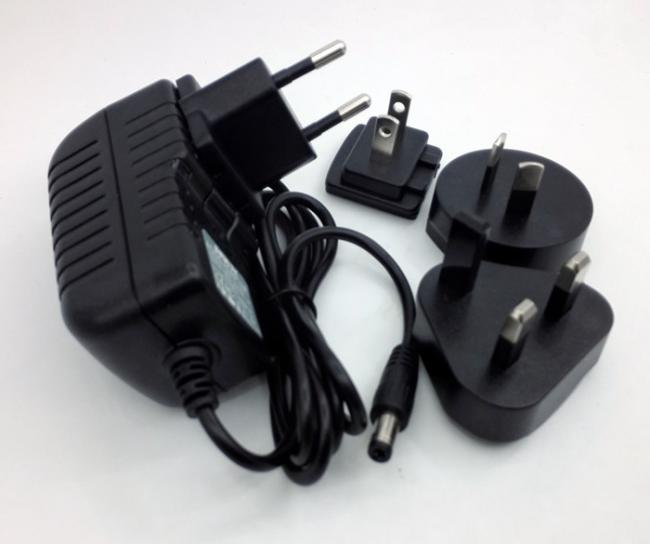

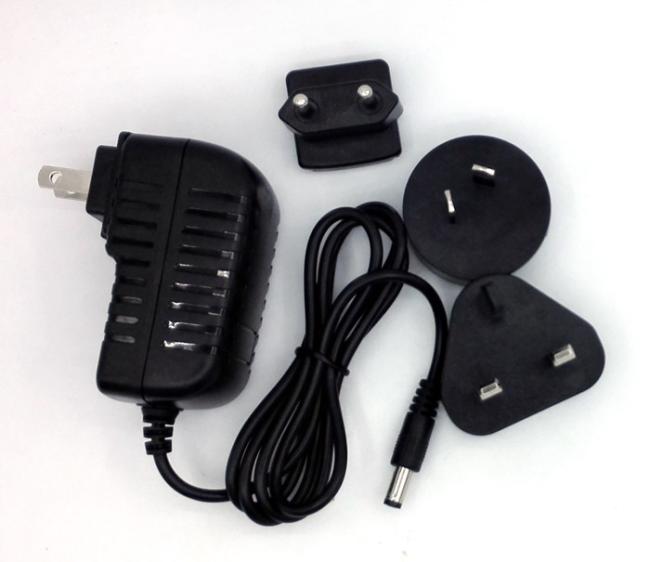

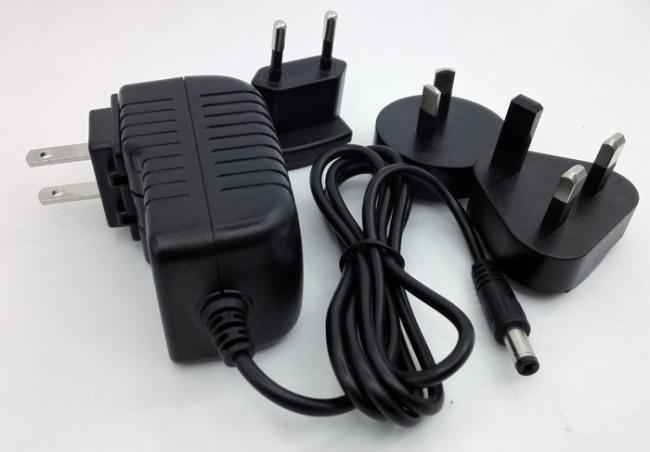

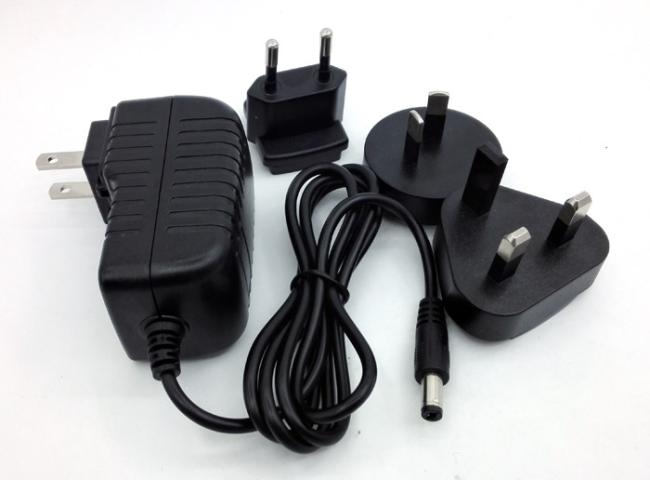

CE RoHS FCC 12V 1.5A 6V 200MA 14v 500ma 13V 6A interchangeable plug power adapter
CE RoHS FCC 12V 1.5A 6V 200MA 14v 500ma 13V 6A interchangeable plug power adapte
| Model | BTB-1201000 | |||
| AC Input | Voltage | 100-240V AC | ||
| Input current | 0.25A/230V AC | |||
| Frequency | 47-63 Hz | |||
| Efficiency | 85% typical | |||
| DC Output | Voltage | 3-12V | ||
| Current | 0-2000mA | |||
| Rated Power | 12W Max | |||
| Ripple&noise | 80mvp-p | |||
| Setup rise hold up time | 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load | |||
| Protection | Over Load | 120%Max, hiccup mode auto recovery after fault condition is removed | ||
| Short Circuit | Auto recovery | |||
| Environment | Store Temperature | -20-85°C | ||
| Wokring Temperature | 0--50°C | |||
| Operating Humidity | 20%-80%RH | |||
| Certifications |
CE | EN 60950-1:2006; EN60065-6-3:2001; EN 55022:2006+A1:2007 | ||
| EN61558-6-1:2001; EN55024:1998+A1:2000+A2:2003 | ||||
| UL | UL 60950-1 ;CSA C22.2 No. 60950-1-07 | |||
| SAA | AS/NZS 60950.1:2011 & AS/NZS 3112:2011 | |||
| PSE | J60950-1(H22) and J55022(H22) | |||
| cTUVus | UL 60950-1:2001;CAN/CSA-C22.2 No.60950-1:2007 | |||
| CCC | GB 4943-2001 | |||
