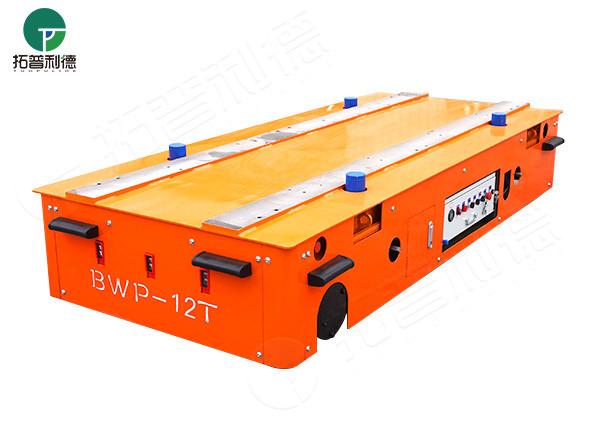

Workshop Heavy Duty Omnidirectional Steering Electric Transfer Cart
Workshop heavy duty omnidirectional steering electric transfer cart
Product Introduction
Workshop heavy duty omnidirectional steering electric transfer cart is powered by a storage battery. Electric flat carts use rubber coated wheels, so they can run on the ground without laying tracks. Flat carts can run unrestricted distances and can move in all directions. Flat cart equipped with a handle and remote control, operation is very convenient. Portable charger small size, easy to charge. The cart is equipped with laser sensors that will automatically stop when encountering obstacles, and anti-collision buffers can be added to reduce the degree of collision. Our load capacity and cart surface size are customizable.
Parts Details
Safe Operation
Requirements for safety protection
1. The body needs configuration: anti-collision mechanism, obstacle avoidance radar, emergency stop button, sound and light alarm, safety warning label, etc.;
2. When the vehicle fails, the corresponding data information prompt is displayed, and the maintenance personnel can quickly repair according to the prompt information;
3. When the vehicle is running normally, the sound and light alarm is issued to remind the pedestrian to avoid the road;
4. Equipped with a circuit protector, when the fault leads to too much current, the circuit protector can immediately work and cut off the power supply, avoid motor, driver, controller and other damage;
Technical Parameters
| Model | BWP-3T |
| Rated Load(t) | 3t |
| Impacted rated load(t) | 3.2 |
| structure of frame | steel plates welded beam structure |
| Thickness of the steel plate | 12 |
| Cart weight(t) | 1 |
| Wheel load(t) | 7.7 |
| Ground requirement | cement ground |
| Table size(mm) | 3000x1200 |
| Height of the whole cart(mm) | 650 |
| Space from the ground(mm) | 50 |
| Wheels distance | 1700 |
| Axles distance | 4300 |
| Turning radius(mm) | 4300 |
| Turning type | turning while driving without stop |
| Control method for turning | control button |
| Turning structure | mechanical |
| Wheel diameter | Ф400/4 |
| Wheel quality | polyurethane wheels |
| Running speed(m/min) | 0-12 |
| Brake principle | electric magnetic force |
| Operation method | with wire or no wire |
| Charger motor's installation | installed on cart |
| Function of charger motor | automatic charging |
| Warning equipment | sound and light lamp |
Advantages
1. Baking paint process: non-stick, heat resistance, sliding, moisture resistance, corrosion resistance, wear resistance.
2. Movement flexibility: wireless remote control, free steering, forward and backward, left and right turns, climbing.
3. Real material: stainless steel material, anti-corrosion, anti-leakage, more secure application.
4. Motor drive system: It adopts the overall drive scheme of electromagnetic brake motor and reducer, with high precision, large torque, high rotation ratio, noiseless operation and maintenance-free.
5. Emergency stop button: If the remote control fails or there is an unexpected situation in the operation of the trolley, you can press it to stop the trolley from running.
6. When the car encounters a person or obstacle during operation, it will sense it in advance and stop running.
Production Process
Packing&Shipping
Our Company
After-sale Service
-
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
-
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
-
16 hours engineering service and 24 hours internet service for our customers.
-
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
-
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
![]()
