China supplied electrical trackless smart running transfer cart
China supplied electrical trackless smart running transfer cart

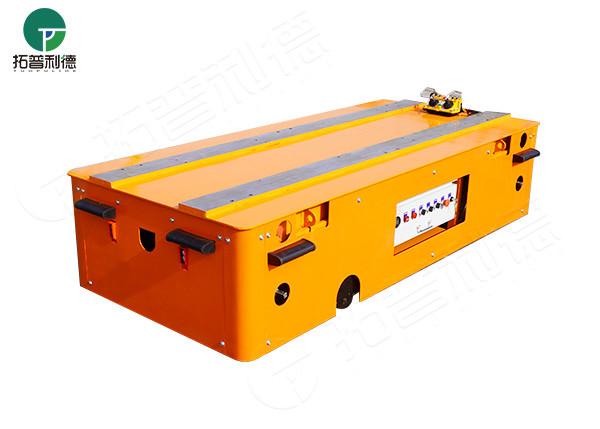

Product Introduction
The electric flat car can carry up to 500 tons, which fully meets your large tonnage requirements. The battery provides power for the flat car to run. Flat car table size is customized, can transport a variety of materials, such as containers, steel plates, molds, etc. Flat carts are equipped with safety devices such as laser sensors, audible and visual alarm lights, and anti-collision buffers to minimize hazards during transportation. Flat cars use maintenance-free batteries, reducing operating costs. Since the flat car is equipped with rubber wheels, it can protect the ground well.
Parts Details
Safe Operation
1. The staff must wear all labor protection and protective equipment before entering the workshop, otherwise they are not allowed to enter the production workshop.
2. Before using the electric flat car, it is necessary to check whether the exterior of the vehicle is in good condition, whether the transmission mechanism and its lubrication condition are normal, remove the production waste or large obstacles stacked on both sides of the track and in the middle, and items that may affect the normal use of the electric flat car, start The use signal should be issued before work.
3. During the operation of the electric flat car, avoid sudden start and sudden stop, to prevent the danger of slipping of the inertial load and the occurrence of safety accidents.
4. During operation, two people must work at the same time, one person operates the electric flat car, the other person pays attention to the items carried on the car and the surrounding conditions, and reminds the past staff to pay attention to safety, notify the operator in time when the situation is found, and take corresponding measures to prevent Injury to others or an accident to yourself occurs.
Technical Parameters
| Model | BWP-3T |
| Rated Load(t) | 3t |
| Impacted rated load(t) | 3.2 |
| structure of frame | steel plates welded beam structure |
| Thickness of the steel plate | 12 |
| Cart weight(t) | 1 |
| Wheel load(t) | 7.7 |
| Ground requirement | cement ground |
| Table size(mm) | 3000x1200 |
| Height of the whole cart(mm) | 650 |
| Space from the ground(mm) | 50 |
| Wheels distance | 1700 |
| Axles distance | 4300 |
| Turning radius(mm) | 4300 |
| Turning type | turning while driving without stop |
| Control method for turning | control button |
| Turning structure | mechanical |
| Wheel diameter | Ф400/4 |
| Wheel quality | polyurethane wheels |
| Running speed(m/min) | 0-12 |
| Brake principle | electric magnetic force |
| Operation method | with wire or no wire |
| Charger motor's installation | installed on cart |
| Function of charger motor | automatic charging |
| Warning equipment | sound and light lamp |
Advantages
1. Baking paint process: non-stick, heat resistance, sliding, moisture resistance, corrosion resistance, wear resistance.
2. Movement flexibility: wireless remote control, free steering, forward and backward, left and right turns, climbing.
3. Real material: stainless steel material, anti-corrosion, anti-leakage, more secure application.
4. Motor drive system: It adopts the overall drive scheme of electromagnetic brake motor and reducer, with high precision, large torque, high rotation ratio, noiseless operation and maintenance-free.
5. Emergency stop button: If the remote control fails or there is an unexpected situation in the operation of the trolley, you can press it to stop the trolley from running.
6. When the car encounters a person or obstacle during operation, it will sense it in advance and stop running.
Production Process
Packing&Shipping
Our Company
After-sale Service
-
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
-
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
-
16 hours engineering service and 24 hours internet service for our customers.
-
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
-
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
![]()
