China Manufacturer Warehouse Electric Flatbed 20t Transfer Car
China manufacturer warehouse electric flatbed 20t transfer car
Working Principle of the sliding line rail vehicle
China manufacturer warehouse electric flatbed 20t transfer car is transported on the track. The transfer cart is equipped with cast steel wheels and has strong bearing capacity. Transfer cart can work both indoors and outdoors, even in harsh working conditions, and can meet your transportation requirements. The transfer cart moves by touching the wire to provide electricity. Flat cart body structure is very firm, heavy load and not easy to deformation. This electric transfer cart has unlimited working hours.
Sliding line power transfer vehicle introduction
Sliding line power railway vehicles are powered by the busbar. The busbar conducts AC 380V directly into the electrical control system of the transport trolley , then the motor drives the reducer to let the wheel of the trolley start, stop, go forward and backward and so on. The trolley is powered by busbar which is laid in the trench or along the wall.Installation position need to desinged as per client actual application need.
Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil Factory Handling Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil
Advantage of sliding line power transfer vehicle
1. Contiunous work
2. Special design outlook
3. Convenient installation
4. Low cost and high working efficiency
Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil Factory Handling Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil

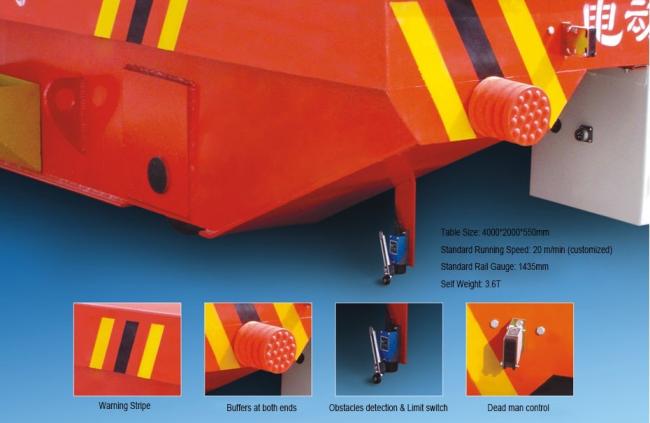

Sliding line power transfer vehicle safe details show
Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil Factory Handling Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil
Parameter of sliding line power transfer vehicle
|
Model |
KPC-8T |
|
Rated Load(t) |
8 |
|
Table size(mm) |
2000*1500*450 |
|
Wheel Base(mm) |
1200 |
|
Rail Gauge(mm) |
1200 |
|
Wheel Diameter(mm) |
Ф250 |
|
Wheel Quantity(Pcs) |
4 |
|
Ground Clearance(mm) |
50 |
|
Running Speed(m/min) |
25 |
|
Motor Power(Kw) |
1 |
|
Max Wheel Load(KN) |
14.4 |
|
Reference Weight(t) |
3 |
|
Recommended Rail Model |
P24 |
Sliding line power transfer vehicle application
Sliding line power railway vehicles are mainly applied in shops , warehouse and inplant for all kinds of cargo handling. It also can be used in the production line and assembly line.
The sliding line vehicle can also applied in high frequency occassions,anti-heat, and anti-explosion workshop,etc.
Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil Factory Handling Custom Heavy-Duty Sliding Line Power Transfer Rail Vehicle for Steel Coil
