Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Product Introduction

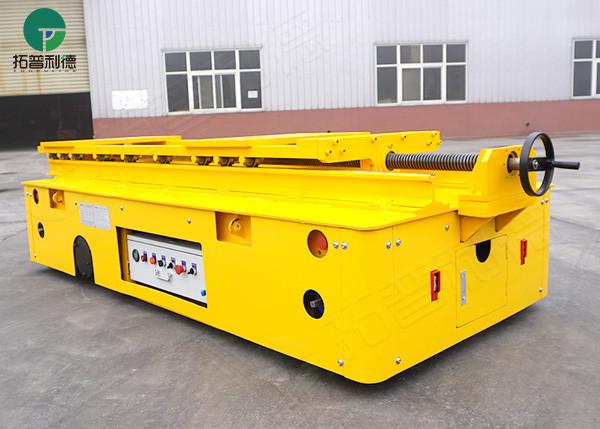

The steerable motor trolley wheel drive 10tone transfer cart is powered by lithium battery, which is used in production line. The load capacity of the transfer cart is 10 tons. The table size of electric cart is 2740mm*1200mm*515mm. The device on the counter are specially made. By turning the steering wheel, to adjust the table device expansion. Trackless electric flat cart can run in all directions, not limited by distance. Battery life is related to the frequency of use.
Transfer cart power supply mode, running track, table size and device are customized according to the exact needs of customers. We have a professional technical team and years of custom experience, excellent reputation.
Parts Details
Application
Technical Parameters
| Model | BWP-2T | BWP-5T | BWP-10T | BWP-15T | BWP-20T | BWP-25T | BWP-30T | BWP-40T | BWP-50T | BWP-60T | BWP-70T | BWP-80T | BWP-100 | |
| Rated load(t) | 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 | |
| Table Size | Length(L) | 2000 | 2200 | 2300 | 2400 | 2400 | 3500 | 3500 | 5000 | 5500 | 5600 | 6000 | 6500 | 6600 |
| Width(W) | 1500 | 2000 | 2000 | 2100 | 2200 | 2200 | 2200 | 2500 | 2600 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 450 | 500 | 550 | 600 | 600 | 700 | 700 | 800 | 800 | 850 | 900 | 950 | 1200 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1600 | 1650 | 1650 | 1650 | 2000 | 2000 | 1800 | 1850 | 1950 | 2000 | |
| Axle Base(mm) | 1380 | 1680 | 1700 | 1830 | 1850 | 2700 | 2700 | 3600 | 2850 | 2900 | 3500 | 3500 | 4000 | |
| Wheel Dia.(mm) | Φ250 | Φ300 | Φ350 | Φ400 | Φ400 | Φ450 | Φ450 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 2*1.2 | 2*1.5 | 2*2.2 | 2*3.5 | 2*4.5 | 2*5.5 | 2*5.5 | 2*6.3 | 2*7.5 | 2*10 | 2*12 | 30 | 40 | |
| Batter Capacity(Ah) | 250 | 180 | 250 | 330 | 400 | 400 | 450 | 440 | 500 | 600 | 600 | 800 | 1000 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | 72 | 72 | 72 | |
| Running Time When Full Load | 2.5 | 2.88 | 2.8 | 2.3 | 2.2 | 1.8 | 2 | 2.6 | 2.5 | 2.2 | 1.8 | 2 | 1.9 | |
| Running Distance for One Charge(Km) | 3 | 3.5 | 3.4 | 2.8 | 2.7 | 2.2 | 2.4 | 3.2 | 3 | 2.7 | 2.2 | 2.4 | 2.3 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 152 | 185 | 190 | |
| Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Advantages
Production Process
Packing&Shipping
Our Company
After-sale Service
tags:trackless transfer car,mold trackless transfer car
