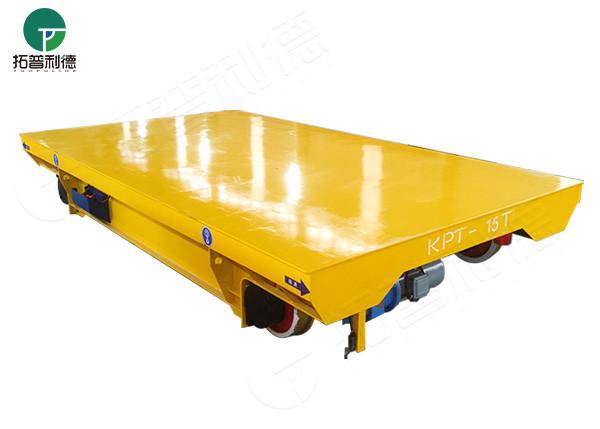

Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Brief Introduction
Towed cable rail transfer electric transport trolley has the advantages of simple structure and low cost. The electric flat car is powered by cables, which are placed on the ground and dragged by the flat car to provide power to the transfer trolley. Tow chain is used with cable, can greatly reduce the ground cable wear degree. Tow chains are available in a variety of styles.
Cable powered rail car is a common flat rail cart for short distance over span in workshop. Electric transfer cart suitable for handling a variety of goods, whether in the factory, warehouse or port, is a good choice.
Product Details
Support Customization
Advantages
Parameter List
|
Model |
KPT-2T |
KPT-5T |
KPT-10T |
KPT-20T |
KPT-30T |
KPT-50T |
KPT-100T |
KPT-150T |
|
|
Rated load (T) |
2 |
5 |
10 |
20 |
30 |
50 |
100 |
150 |
|
|
Table size |
length(L) |
2000 |
3500 |
3600 |
4000 |
4500 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2000 |
2000 |
2200 |
2200 |
2500 |
2800 |
3000 |
|
|
Height(H) |
450 |
450 |
500 |
550 |
600 |
650 |
850 |
1200 |
|
|
Wheel Base (mm) |
1200 |
2500 |
2600 |
2800 |
3200 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge (mm) |
1200 |
1435 |
1435 |
1435 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
Φ600 |
Φ600 |
|
|
Wheel Quantity(Nos) |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
|
|
Running speed (m/min) |
0-30 |
0-30 |
0-25 |
0-25 |
0-25 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power (Kw) |
0.8 |
1.5 |
1.5 |
2.5 |
4 |
5.5 |
11 |
15 |
|
|
Max Wheel Load (KN) |
14.4 |
25.8 |
42.6 |
77.7 |
110.4 |
174 |
343.8 |
265.2 |
|
|
Reference Weight (t) |
2.5 |
3.5 |
4 |
5.6 |
6.5 |
7.8 |
14.1 |
26.2 |
|
|
Recommended Rail Model |
P15 |
P18 |
P18 |
P24 |
P38 |
P43 |
QU100 |
QU100 |
|
Company Profile
Related Products
Tags:Dies and Molds Transfer Vehicle,Material Handling Transfer Cart
