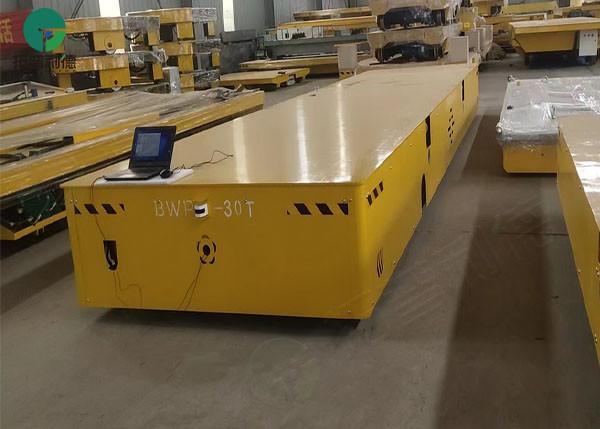

Steerable Flatbed Cargo Heavy Duty Electric Platform Trolley
Steerable Flatbed Cargo Heavy Duty Electric Platform Trolley
Product Introduction
The trackless electric flat car is made of high strength polyurethane coated rubber wheels, which can run flexibly in the factory and workshop. It can not only walk in a straight line between the working points, but also make flexible turns, improving the convenience of transportation in the working section. It is a very effective transportation helper for customers who need to transport items to different ranges.
Steerable flatbed cargo heavy duty electric platform trolley have many advantages. Transfer cart is not limited by the track, can be operated wirelessly, and can turn freely.
Parts Details
Application
Technical Parameters
| Model | BWP-2T | BWP-5T | BWP-10T | BWP-15T | BWP-20T | BWP-25T | BWP-30T | BWP-40T | BWP-50T | BWP-60T | BWP-70T | BWP-80T | BWP-100 | |
| Rated load(t) | 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 | |
| Table Size | Length(L) | 2000 | 2200 | 2300 | 2400 | 2400 | 3500 | 3500 | 5000 | 5500 | 5600 | 6000 | 6500 | 6600 |
| Width(W) | 1500 | 2000 | 2000 | 2100 | 2200 | 2200 | 2200 | 2500 | 2600 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 450 | 500 | 550 | 600 | 600 | 700 | 700 | 800 | 800 | 850 | 900 | 950 | 1200 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1600 | 1650 | 1650 | 1650 | 2000 | 2000 | 1800 | 1850 | 1950 | 2000 | |
| Axle Base(mm) | 1380 | 1680 | 1700 | 1830 | 1850 | 2700 | 2700 | 3600 | 2850 | 2900 | 3500 | 3500 | 4000 | |
| Wheel Dia.(mm) | Φ250 | Φ300 | Φ350 | Φ400 | Φ400 | Φ450 | Φ450 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 2*1.2 | 2*1.5 | 2*2.2 | 2*3.5 | 2*4.5 | 2*5.5 | 2*5.5 | 2*6.3 | 2*7.5 | 2*10 | 2*12 | 30 | 40 | |
| Batter Capacity(Ah) | 250 | 180 | 250 | 330 | 400 | 400 | 450 | 440 | 500 | 600 | 600 | 800 | 1000 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | 72 | 72 | 72 | |
| Running Time When Full Load | 2.5 | 2.88 | 2.8 | 2.3 | 2.2 | 1.8 | 2 | 2.6 | 2.5 | 2.2 | 1.8 | 2 | 1.9 | |
| Running Distance for One Charge(Km) | 3 | 3.5 | 3.4 | 2.8 | 2.7 | 2.2 | 2.4 | 3.2 | 3 | 2.7 | 2.2 | 2.4 | 2.3 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 152 | 185 | 190 | |
| Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Advantages
Production Process
Packing&Shipping
Our Company
After-sale Service
