Electrical Ladle Battery Power Transfer Car For Steel Plant
Electrical Ladle Battery Power Transfer Car For Steel Plant
Description

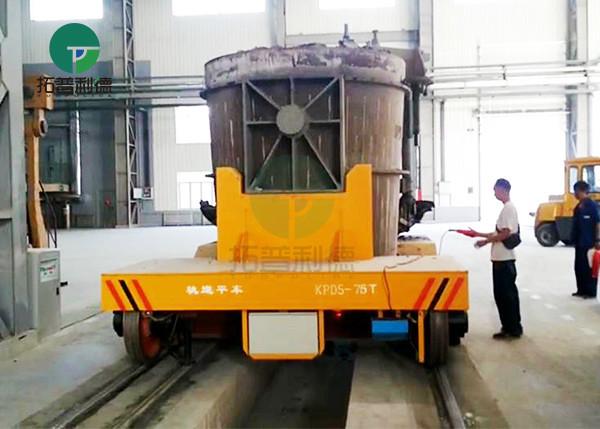

Ladle transfer cart is a kind of electric transfer cart that can transport high temperature molten steel. The structure and accessories of fcart are customized according to the transportation environment and transportation materials, which can effectively adapt to the high temperature environment and fully consider the safety.
Ladle cart is installed on the basis of ordinary flat cart with a ladle that can be dumped. Usually we need to lay the track in the factory first, and the ladle cart runs on the track. The wheels of the transfer cart are cast steel wheels, which have strong bearing capacity and high temperature resistance. In addition, the cart is thickened steel plate, which can reduce the damage of molten steel splash to the body.
We pay great attention to the safety of transportation. If you need to transport high temperature liquid such as molten steel, you can choose our customized ladle cart.
Parts Details
Application
Technical Parameters
| Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
