ELF Truck Parts 4HL1 Diesel Engine Piston 3.0 + 2.0 + 3.0mm Ring Size For Isuzu
ELF Japanese Truck 4HL1 For Isuzu Engine Diesel Piston with oil inner gallery
Specifiions:
Details for ELF Truck 4HL1 Diesel Engine Piston 8-97331-643-0:
4HL1 Appliion: ELF No. CyI: 4 Diameter: 115.0MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| 8-97331-643-0 | 58.3 | 112.0 | 36x79 | w/al-fin | |
| Piston Ring | OEM No. | Size1 | Size2 | ||
| 8-97331-641-0 | 3.0+2.0+3.0 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
FAQ:
Q:What is your terms of payment?
A:T/T or western Union
Q: Can i get a sample for testing ? How do it charged ?
A: Yes,We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Do you provide guarantee of the engine and parts ?
A: Yes, all our products provides guarantees according to industry standards.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery .
Q:What's the packing?
A:Neutral Packing ,our packing or as client's requirements.
Q:Do you have any other engine parts?
A:Yes,all kinds of engine models and parts.
Description:
A series of engine models for ISUZU piston as below, there are many models not include in this sheet, pls also feel free enquiry from us.
| ISUZU | C240PK | 4 | 86 | 84.5 | 51.5 | 27 | |
| ISUZU | 4JA1 | 8-94152712-1 | 4 | 93 | 87.6 | 47.8 | 31 |
| ISUZU | 4JB1 | 8-94152711-0 | 4 | 93 | 92 | 51.8 | 31 |
| ISUZU | 4BD1 | 8-94422975-1 | 4 | 102 | 98 | 58.9 | 35 |
| ISUZU | 4BC2 | 5-12111-230-4 | 4 | 102 | 98 | 58.9 | 35 |
| ISUZU | 6BB1 | 5-12111-013-0 | 6 | 102 | 112.3 | 62.7 | 35 |
| ISUZU | 6BD1T | 5-12111-068-2 | 6 | 102 | 104.3 | 58.7 | 35 |
| ISUZU | 4BE1 | 8-94438989-1 | 4 | 105 | 95.7 | 56.4 | 35 |
| ISUZU | 6BG1 | 1-12111-323-2 | 6 | 105 | 95 | 55.5 | 35 |
| ISUZU | 6BF1 | 1-12111-345-0 | 6 | 105 | 110 | 58.75 | 35 |
| ISUZU | 10PA1 | 1-12111-154-1 | 10 | 115 | 113.2 | 75.2 | 38 |
| ISUZU | 10PB1 | 1-12111-217-0 | 10 | 115 | 104 | 67.8 | 38 |
| ISUZU | 10PC1 | 1-12111-419-1 | 10 | 119 | 104 | 67.7 | 38 |
| ISUZU | 10PD1 | 1-12111-549-3 | 10 | 119 | 106.5 | 67.5 | 43 |
| ISUZU | DH100 | 9-12111-742-3 | 6 | 120 | 150.83 | 77.8 | 45 |
| ISUZU | 6QA1 | 1-12111-388-1 | 6 | 125 | 136 | 83 | 46 |
| ISUZU | 6RB1 | 1-12111-437-0 | 6 | 135 | 142.9 | 82.1 | 50 |
| ISUZU | 6BG1(3R) | 6 | 105 | 94.5 | 35 | ||
| ISUZU | 6BG1(4R) | 6 | 105 | 94.2 | 35 | ||
| ISUZU | 4HG1 | 8-97183666-0 | 4 | 115 | 104.4 | 36 | |
| ISUZU | 6SD1 | 1-12111-569-0 | 6 | 120 | 117 | 43 | |
| ISUZU | 6SD1 | 6 | 120 | 117 | 43 | ||
| ISUZU | DA120 | 6 | 100 | 125 | 34 | ||
| ISUZU | DA640 | 6 | 102 | 125 | 36 | ||
| ISUZU | 6HE1 | 6 | 110 | 119.8 | 40 | ||
| ISUZU | 4HF1 | 8-97095-585-1 | 4 | 112 | 94.5 | 36 | |
| ISUZU | 8-97176-655-0 | ||||||
| ISUZU | 4HF1T | 5-87813-391-0 | 4 | 112 | 94.5 | 36 | |
| ISUZU | 8-97176-656-0 |

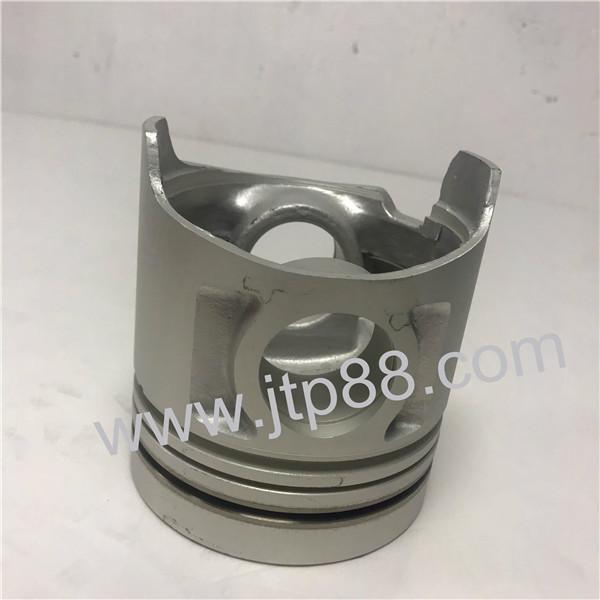

4HL1 ENGINE PISTON PICTURE AS BELOW:
Provide engine parts,including pistion cylinders,pistion ring,piston pin,liner liner kits, ect.
If you have any question or problem,please feel free to contact us,we will reply you as soon as possible!
