6DS7 Diesel Engine Piston Ring Sets 98mm For Mitsubish OEM ME023333
Japanes car engine parts Mitsubish 6DS7 Diesel Engine Parts Piston Ring 98mm
Specifiions:
Details For Engine Parts Mitsubishi 6DS7 6DS7C Piston Ring:
| MITSUBISHI 6DS7 Appliion: TRUCK No. CyI: 6 Diameter: 98.0MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| ME023274 | 60.7 | 105.2 | 32x82 | ||
| Piston Ring | OEM No. | Size1 | Size2 | ||
| ME023333 | 3.0+2.0+5.0 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| ME021843 | 98.0x110.0x201.2 | 117.0x10.0+1.2 | |||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| ME025265 | ME025292 | ME020448 | |||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| ME020236 | 46.0 | 9.0 | 137.0 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| ME021039 | 37.0 | 9.0 | 137.0 | ||
Description:
| Engine | c.c. | Vehicle Model | TEIKUKO Product Code | Cyl | Position | Size (mm) | shape | Material | Surface | Reference | ||
| d1 | h1 | a1 | ||||||||||
| Chassis Type | TEIKUKO Series No. | No. | (D) | (B) | (T) | Treatment | ||||||
| 4D55 | 2346 | Galant | TEIKUKO-AD-60208 | 4 | 1 | 91.1 | 2.5 | 3.45 | BF | SR | Cr | |
| 2 | 91.1 | 2 | 3.8 | T1 | CR | Cr | ||||||
| 0 | 91.1 | 4 | 4.15 | E-BC16 | SR | GN | ||||||
| 4DR5 | 2659 | Canter T96A T96B | TEIKUKO-AD-60209 | 4 | 1 | 92 | 2.5 | 3.7 | BF-K2 | HB | JF | 31617-02012 |
| T200C T200F T210CT | 2 | 92 | 2 | 3.9 | T1 | CR | Fe | 31617-02013 | ||||
| Jeep J24 J36 J44 | 3 | 92 | 2 | 3.9 | T1 | CR | Fe | 31617-05102 | ||||
| J54 J24H | 0 | 92 | 4.5 | 4.3 | E-BC3 | CR | JF | 31617-05103 | ||||
| Rosa B200 B210 | ||||||||||||
| TEIKUKO-AD-60210 | 1 | 92 | 2.5 | 3.45 | BF-K2 | SR | Cr | |||||
| 2 | 92 | 2 | 3.9 | T1 | CR | Fe | ||||||
| 3 | 92 | 2 | 3.9 | T1 | CR | Fe | ||||||
| 0 | 92 | 4.5 | 4.6 | E-BC16 | SR | GN | ||||||
| 6DR5 | 3983 | Rosa | TEIKUKO-AD-60211 | 6 | 1 | 92 | 2.5 | 3.7 | BF-K2 | HB | JF | 31717-12012 |
| T44 T44b | 2 | 92 | 2 | 3.9 | T1 | CR | Fe | 31717-12013 | ||||
| Fork Lift | 3 | 92 | 2 | 3.9 | T1 | CR | Fe | |||||
| FD60 | 0 | 92 | 4.5 | 4.3 | E-BC3 | CR | JF | |||||
| TEIKUKO-AD-60212 | 1 | 92 | 2.5 | 3.45 | BF-K2 | SR | Cr | |||||
| 2 | 92 | 2 | 3.9 | T1 | CR | Fe | ||||||
| 3 | 92 | 2 | 3.9 | T1 | CR | Fe | ||||||
| 0 | 92 | 4.5 | 4.6 | E-BC16 | SR | GN | ||||||
| 4DR52T-1 | 2659 | TEIKUKO-AD-60213 | 4 | 1 | 92 | 2.35 | 3.45 | BF-K1 | SR | Cr | ME996069 | |
| 2 | 92 | 2 | 3.45 | T1-IC | CR | Cr | ||||||
| 0 | 92 | 4 | 4.35 | E-BC16 | SR | GN | ||||||
| S4E | 2609 | Fork Lift | TEIKUKO-AD-60214 | 4 | 1 | 94 | 2.5 | 4 | BF-K2 | HB | Cr | 34417-11011 |
| 2 | 94 | 2 | 4 | T1 | CR | Fe | ||||||
| 0 | 94 | 4.5 | 4.45 | E-BC3 | HB | Cr | ||||||
| S4E | 2609 | TEIKUKO-AD-60215 | 4 | 1 | 94 | 2.5 | 3.8 | BF-K2 | CR | 4Cr | 34417-02012 | |
| 2 | 94 | 2 | 3.8 | T1-IC | CR | Cr | ||||||
| 0 | 94 | 4.5 | 4.35 | E-BC3 | CR | Cr | ||||||
| 6DS1 | 4678 | Truk | TEIKUKO-AD-60216 | 6 | 1 | 95 | 2.5 | 4.1 | BF | CR | 4Cr | 30817-01006 |
| T62D T650B T650E | 2 | 95 | 2 | 4.1 | T1-IC | CR | Cr | ME020382 | ||||
| T650J T650ZD | 3 | 95 | 2 | 4.1 | T1 | CR | Fe | ME021376 | ||||
| BUS/MR620 | 0 | 95 | 4.5 | 4.2 | E-BC3 | CR | Cr | |||||
| 6DS3 | 5103 | T652B | TEIKUKO-AD-60217 | 6 | 1 | 95 | 3 | 3.9 | BF-K2 | HB | Cr | ME021855 |
| B622 | 2 | 95 | 2 | 4.1 | T1-IC | CR | Cr | ME023327 | ||||
| 0 | 95 | 4.5 | 4.2 | E-BC3 | CR | Cr | ME023327-02 | |||||
| 4DR7 | 2835 | Canter | TEIKUKO-AD-60218 | 4 | 1 | 95 | 2.35 | 3.7 | BF-K1 | HB | Cr | ME997256 |
| 2 | 95 | 2 | 3.9 | T1-IC | CR | Cr | ||||||
| 0 | 95 | 4 | 4.35 | E-BC16 | SR | Cr | ||||||
| 4M40-NA | 2835 | Canter | TEIKUKO-AD-60219 | 4 | 1 | 95 | 2.35 | 3.45 | BF-K1 | SR | Cr | ME202342 |
| Challenger | 2 | 95 | 2 | 3.7 | T1-IC | HB | Cr | |||||
| 0 | 95 | 4 | 4.15 | E-BC16 | SR | Cr | ||||||
| 4M40 | 2835 | Pajero | TEIKUKO-AD-60220 | 4 | 1 | 95 | 2.306 | 3.45 | BF-K1 | SR | Cr | ME201522 |
| 2 | 95 | 2 | 3.9 | T1-IC | CR | Cr | ||||||
| 0 | 95 | 4 | 4.35 | E-BC16 | SR | GN | ||||||
| TEIKUKO-AD-60221 | 1 | 95 | 2.306 | 3.5 | BF-K1 | SR | GN | ME202380 | ||||
| 2 | 95 | 2 | 3.9 | T1-IC | CR | Cr | ||||||
| 0 | 95 | 4 | 4.35 | E-BC16 | SR | GN | ||||||
| 4M40-TC | TEIKUKO-AD-60222 | 4 | 1 | 95 | 2.306 | 3.45 | BF-K1 | SR | Cr | ME202148 | ||
| 2 | 95 | 2 | 4.1 | T1-IC | CR | Cr | ||||||
| 0 | 95 | 3 | 3.25 | E-BC16 | SR | GN | ||||||
| 6DS7 | 5430 | Truck | TEIKUKO-AD-60223 | 6 | 1 | 98 | 3 | 4 | BF-K2 | HB | Cr | ME023333 |
| T653B T653BG | 2 | 98 | 2 | 4.2 | T1-IC | CR | Cr | ME023333-02 | ||||
| T663C T663ZD FK102 | 0 | 98 | 5 | 4.8 | E-BC3 | CR | Cr | ME021861 | ||||
| Tractor/T653ZR | ME024409 | |||||||||||
| Bus/BE211 Rosa | ||||||||||||
| 6DS5 | 4974 | Truck | TEIKUKO-AD-60224 | 6 | 1 | 98 | 3 | 4.2 | BF | CR | 4Cr | 30817-31000 |
| T630 T651 | 2 | 98 | 2 | 4.2 | T1-IC | CR | Cr | ME020427 | ||||
| Bus/B620B B620E | 3 | 98 | 2 | 4.2 | T1 | CR | Fe | ME021382 | ||||
| B620BE | 0 | 98 | 5 | 4.8 | E-BC3 | CR | Cr | ME021856 |
Our sevice:
100% quality assurance, develop and manufacture follow original ones;
Reasonable stock and timely delivery;
Quick response within 24 hours ;
Long-term strong and steady supplying ability;
Ensure the best quality;
The first-class logistics & Ensure that your goods arrived safely;
Goods will Be packed safe & carefully;
Good After-sales service.Track usage.Positive feedback response;
Establish inquiry library for you, we are your professional sourcing consultant;
Our excellemt quality products and excellent service will meet your requirements. Your satisfaction is our priority.
Our products:
1. Material:
boron alloy, boron-copper chrome cast iron alloy, steel, etc.
2. Treating:
phosphated, nitrided, laser treatment, quenching, chrome plated, etc.
3. Performance:
high temperature resistance, high wear resistance, good dimensional stability.

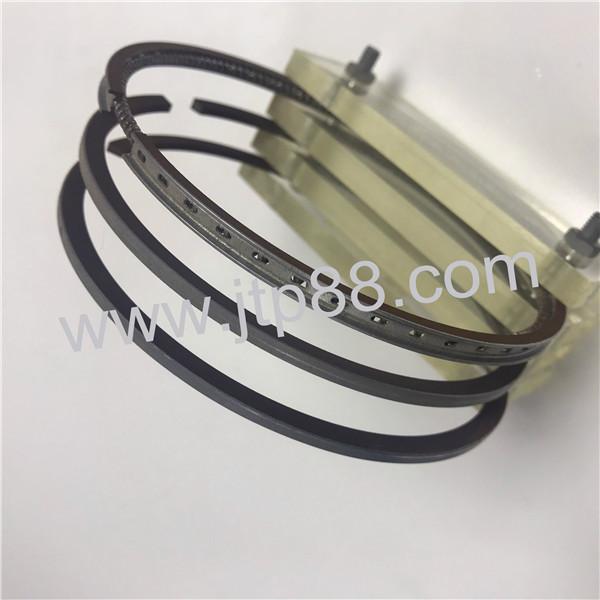

6DS7 PISTON RING PICTURE AS BELOW:
