4BD1 Automotive Piston Rings / ISUZU Engine Cylinder Liner Kit 5-12111-242-1 Dia 102mm
4BD1 piston ring ISUZU engine cylinder liner kit 5-12111-242-1 dia 102mm
Specifiions:
4BD1 Appliion: ELF LIGHT TRUCK No. CyI: 4 Diameter: 102.0MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| 5-12111-242-1 | 58.8 | 98.0 | 35x87 | ||
| Piston Ring | OEM No. | Size1 | Size2 | ||
| 5-12181-003 | 3.0+2.5+5.0 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| 1-11261-240-0 | 102.0x105.0x204.0 | 112x1.3 | |||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| 5-11510-054 | 8-97011-031 | 5-12251-006 | |||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 1-12551-050-0 | 45.0 | 9.0 | 127.8 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 1-12552-025-0 | 37.5 | 9.0 | 127.8 | ||
Our service:
1. Small orders are welcomed.
2. Trial orders are acceptable
3. We have more than 10 years' experience in export.
4. We have more than 400 different items of engine parts for different brand of cars and construction machinery.
5. All our products are processed through ISO9001:2008;ISO/TS16949:2009.
6. We can offer very professional service for trade as well as after service.
Description:
A series of engine models for MITSUBISHI piston as below, there are many models not include in this sheet, pls also feel free enquiry from us.
| ISUZU | C240PK | 4 | 86 | 84.5 | 51.5 | |
| ISUZU | 4JA1 | 8-94152712-1 | 4 | 93 | 87.6 | 47.8 |
| ISUZU | 4JB1 | 8-94152711-0 | 4 | 93 | 92 | 51.8 |
| ISUZU | 4BD1 | 8-94422975-1 | 4 | 102 | 98 | 58.9 |
| ISUZU | 4BC2 | 5-12111-230-4 | 4 | 102 | 98 | 58.9 |
| ISUZU | 6BB1 | 5-12111-013-0 | 6 | 102 | 112.3 | 62.7 |
| ISUZU | 6BD1T | 5-12111-068-2 | 6 | 102 | 104.3 | 58.7 |
| ISUZU | 4BE1 | 8-94438989-1 | 4 | 105 | 95.7 | 56.4 |
| ISUZU | 6BG1 | 1-12111-323-2 | 6 | 105 | 95 | 55.5 |
| ISUZU | 6BF1 | 1-12111-345-0 | 6 | 105 | 110 | 58.75 |
| ISUZU | 10PA1 | 1-12111-154-1 | 10 | 115 | 113.2 | 75.2 |
| ISUZU | 10PB1 | 1-12111-217-0 | 10 | 115 | 104 | 67.8 |
| ISUZU | 10PC1 | 1-12111-419-1 | 10 | 119 | 104 | 67.7 |
| ISUZU | 10PD1 | 1-12111-549-3 | 10 | 119 | 106.5 | 67.5 |
| ISUZU | DH100 | 9-12111-742-3 | 6 | 120 | 150.83 | 77.8 |
| ISUZU | 6QA1 | 1-12111-388-1 | 6 | 125 | 136 | 83 |
| ISUZU | 6RB1 | 1-12111-437-0 | 6 | 135 | 142.9 | 82.1 |
| ISUZU | 6BG1(3R) | 6 | 105 | 94.5 | 35 | |
| ISUZU | 6BG1(4R) | 6 | 105 | 94.2 | 35 | |
| ISUZU | 4HG1 | 8-97183666-0 | 4 | 115 | 104.4 | 36 |
| ISUZU | 6SD1 | 1-12111-569-0 | 6 | 120 | 117 | 43 |
| ISUZU | 6SD1 | 6 | 120 | 117 | 43 | |
| ISUZU | DA120 | 6 | 100 | 125 | 34 | |
| ISUZU | DA640 | 6 | 102 | 125 | 36 | |
| ISUZU | 6HE1 | 6 | 110 | 119.8 | 40 | |
| ISUZU | 4HF1 | 8-97095-585-1 | 4 | 112 | 94.5 | 36 |
| ISUZU | 8-97176-655-0 | |||||
| ISUZU | 4HF1T | 5-87813-391-0 | 4 | 112 | 94.5 | 36 |
| ISUZU | 8-97176-656-0 |

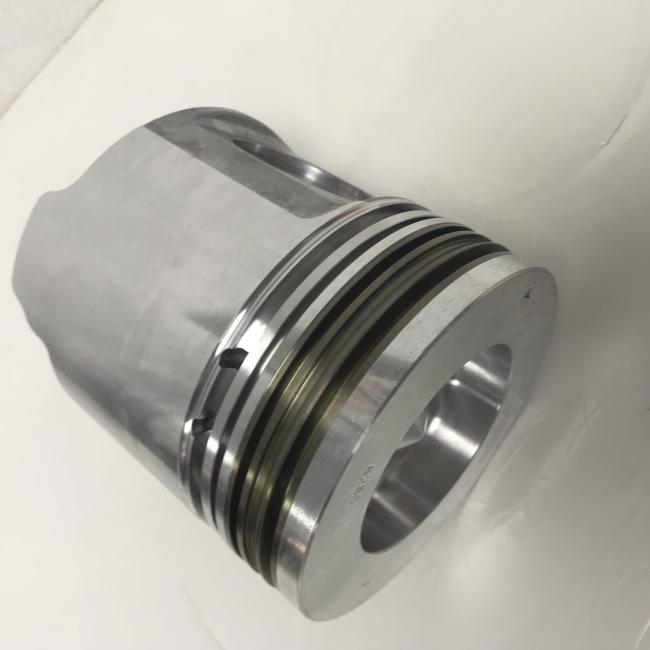

4BD1 ENGINE PISTON PICTURE AS BELOW:
