Chrome Airbag Air Ride Suspension Compressor 150psi 2.18CFM , 12v Car Air Compressor
Yurui 6455BH H-Compressor 1 Year Warranty 150psi 2.18CFM Air Ride Suspension Compressor
►Description

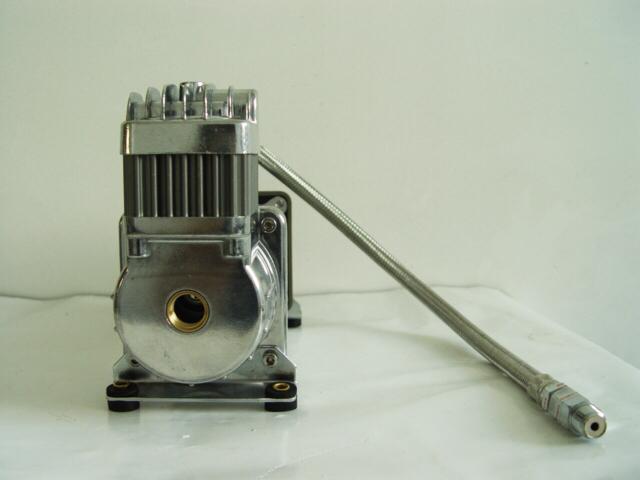

YF6455BH is a hardmount compressor that pumps a massive 2.18CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON-OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.
►Company information:
Yuyao Yurui Electrical is a professional factory dealing in the suspension air compressor, inflator, car fan vacuum cleaners, heater fans and other car accessories. With more than 15 years history, we have our own inspection team that is around 15 persons and engineers 3 persons. That controls the quality and explore new products.
► Used with
• Air tanks in different sizes
• Pnuematic system
• Air horns
►Our Advantages
1 . One year warranty
2 . Competitive price among manufactures
3 . Portable to carry with
4 . High quality
5 . Can be pumped more than 20 , 000 times
6 . Fast inflation and low noise
7 . Anti-dust and explosion-proof
8 . Water resistant : IP 67, working in the water for 2 hours
►SPECIFICATION
2.18CFM 150PSI
• 12 Volt
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 30 Amps
• 1/4"NPT Inlet port
• Net Weight: 8.95 lbs
11.25"Lx4"Wx6.75"H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 15 | 23 | 24 | 25 |
| CFM | 2.18 | 1.48 | 1.2 | 0.84 |
| LPM | 62 | 42 | 34 | 24 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
2.0 Gallon Tank
0 to 150 psi 2 min 5 sec
120 to 150 psi 40 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
