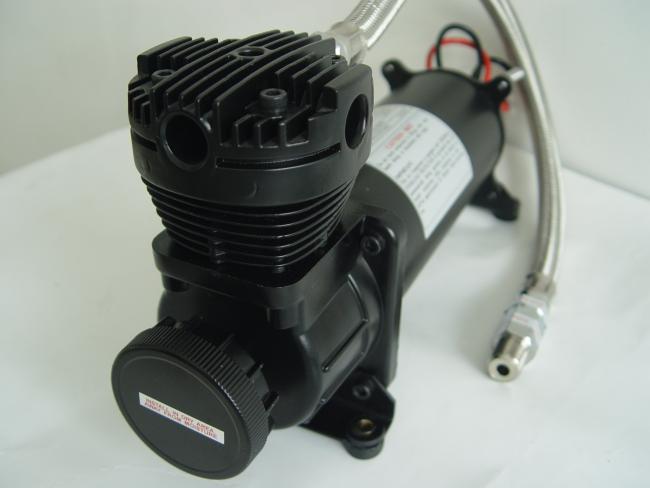

Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant

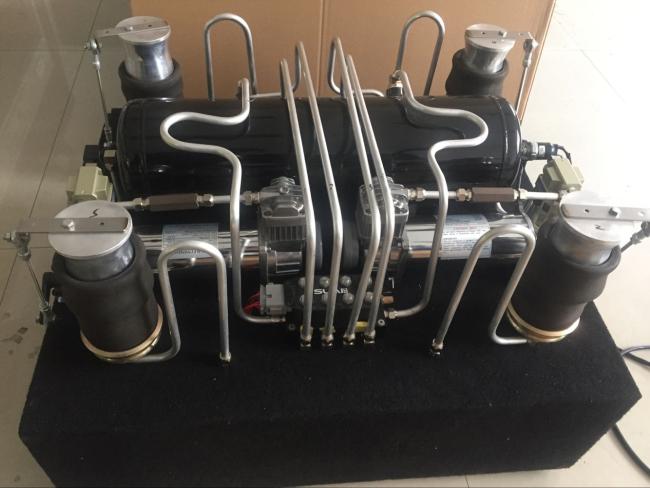

Ford Off-road Car Air Lift Suspension System Fast Inflation
►Description
If you want to easily "level up" by inflating & deflating your airbags individually from the comfort of your own vehicle & have a universal coupler connection to run a tyre inflator (supplied in this kit) or air blower gun from, then this is the perfect compressor for you.
►Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
►SPECIFICATION
1.8CFM 200PSI
•12 Volt
•Duty Cycle: 100% @ 100 PSI
•Duty Cycle: 50% @ 200 PSI
•Max. Working Pressure: 200 PSI
•12V Max. Amp Draw: 23 Amps
•3/8"NPT Inlet port
•Net Weight: 11 lbs
11"Lx4"Wx6.55"H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 11 | 17 | 21 | 22 | 19 |
| CFM | 1.8 | 1.34 | 1.05 | 0.74 | 0.56 |
| LPM | 51 | 38 | 30 | 21 | 16 |
| BAR | 0 | 3 | 6 | 10 | 14 |
► RECOMMENDED TANK
TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 4 min 58 sec
150 to 200 psi 1 min 50 sec
5.0 Gallon Tank
0 to 200 psi 10 min 10 sec
150 to 200 psi 2 min 50 sec
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
►Our Advantages
| 1 . One year warranty |
2 . Competitive price among manufactures
|
|
3 . Portable to carry with
|
4. Fast inflation and low noise |
|
5.Can be pumped more than 20 , 000 times
|
6. Water proof : Can work in the water for 2 hours , IP67
|
