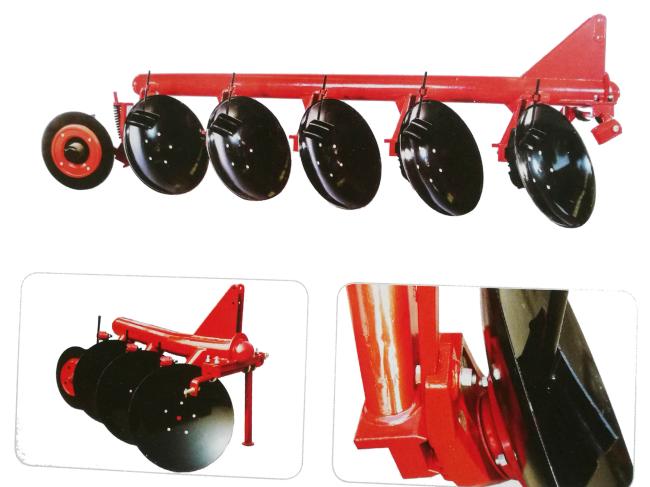

W500mm Small Scale Agricultural Machinery Seamless Tubular Pipe Two Furrow Plough
TSDP series Seamless Tubular Pipe Furrow Plough for deep ploughing in root-infested,sticky,stony&hard soils
TSDP series round tube disc plough is widely used for deep ploughing in root-infested,sticky,stony&hard soils.Mixes remains of crops and weeds throughout the depth of ploughing.Hence ideal for rain-fed areas for checking soil erosion by water and wind.
Advantage:
1. Spring loaded floating rear furrow wheel controls the side draft to ensure straight work and ease of.
2. Handling by smaller tractor.
3. Re-greasable taper roller bearings in disc hubs.
4. Disc angle adjustable to vary the penetration with varying soil conditions.Cat I & II linkage.
5. Disc scrapers are adjustable to ensure that the disc remain clean in all conditions.
| Model | Unit | TSDP-2 | TSDP-3 | TSDP-4 | TSDP-5 |
| Working width | mm | 500 | 750 | 1000 | 1250 |
| Working depth | mm | 180-280 | 180-280 | 180-280 | 180-280 |
| No. of discs | pcs | 2 | 3 | 4 | 5 |
| Disc diameter | mm | 710 | 710 | 710 | 710 |
| Overall weight | kg | 310 | 470 | 490 | 560 |
| Matched power | hp | 40-50 | 60-80 | 80-100 | 100-120 |
