8pcs Discs Small Scale Agricultural Machinery Working Width 880-1760mm Rotary Disc Plough

Price Negotiable

Price: negotiated

MOQ: 1 set

Delivery Time: 5-10 working days

Brand: Easwon

Product Description

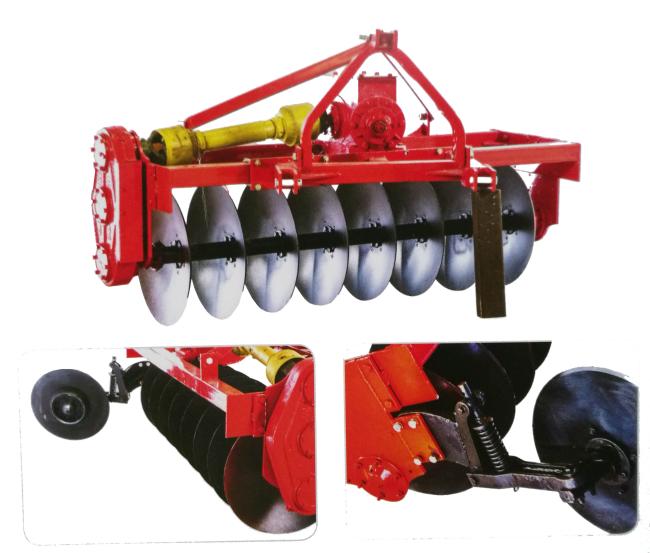

1LYQ series european standard rotary-driven disc plough, working width 880-1760mm

1LYQ rotary-driven disc plough is mounted on a tractor through a rear mounted three-point linkage.

During the working process of the implement, the motive power is transferred to the gear case of the disc plow through a back power takeoff shaft (PTO) of the tractor to drive the discs to rotate. The driven disc plow, which is mainly suitable for paddy field plowing, has the advantages of no weed winding, high operational quality and high working efficiency.

Model	Unit	1LYQ-422	1LYQ-522	1LYQ-622	1LYQ-722	1LYQ-822
Working width	mm	880	1100	1320	1540	1760
Working depth	mm	200-240	200-240	200-240	200-240	200-240
No. of disc	pcs	4	5	6	7	8
Rotating speed of input shaft	r/min	540/720	540/720	540/720	540/720	540/720
Rotating speed of outer shaft	r/min	90-120	90-120	90-120	90-120	90-120
Matched power	hp	18-22	25-30	40-50	50-60	60-70
Overall weight	kg	240	276	321	357	393
