Jointing L2500mm Woodworking Press Machine
MH1725A MH1725 Woodworking composer machine
Woodworking composer is mainly used in furniture, handicrafts, cabinets, solid wood doors etc, The woodworking composer joint small wood pieces to big one up to 1250x2500mm, and the jointed thickness is up to 90mm. It is high efficient and can continue working(no need to wait), it only take 3-7 minutes to complete a standard board(1250x2500mm). Woodworking composer is with less power consumption(1-2kw per day). In somewhere, it can replace window & door frame press machine.
Woodworking composer specification:
| Technical specification | Unit | MH1725A | MH1725 |
| Max. jointing length | mm | 2500 | 2500 |
| Max. jointing width | mm | 1250 | 1250 |
| Max. jointing thickness | mm | 15-90 | 15-90 |
| Number of rows | 6 | 14 | |
| Motor power | kw | 1.5 | 1.5 |
| Main spindle speed | r/min | 2 | 2 |
| Working air pressure | MPa | 0.4-0.8 | 0.4-0.8 |
| Overall dimension | mm | 3860x3315x3787 | 4480x3315x3787 |
| Net weight | kg | 2030 | 4150 |

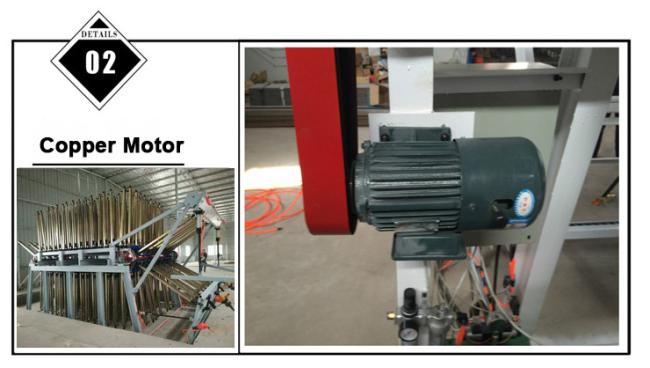

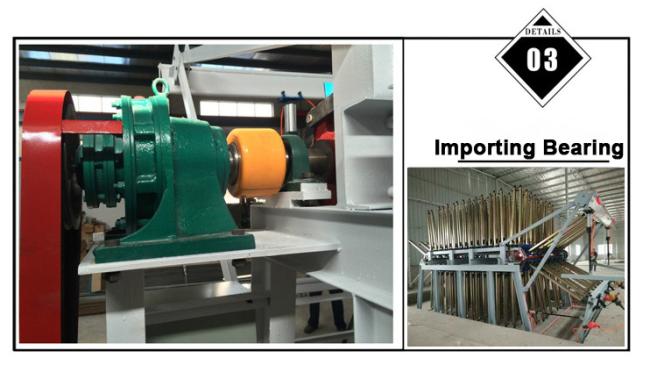

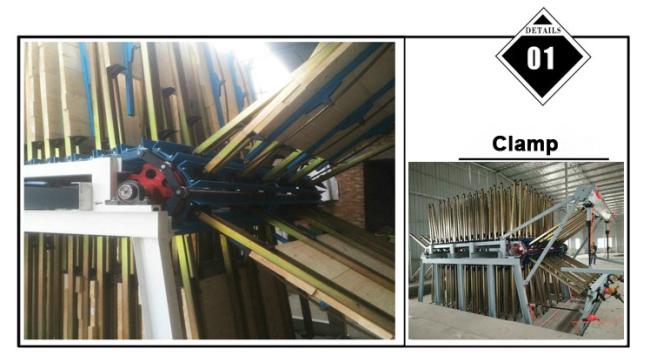

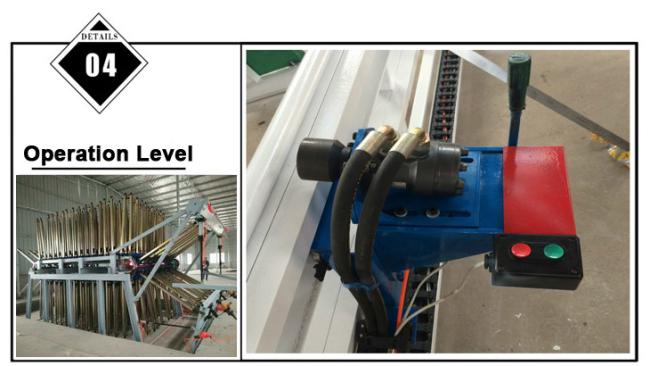

Woodworking composer details:
 |
 |
 |
 |

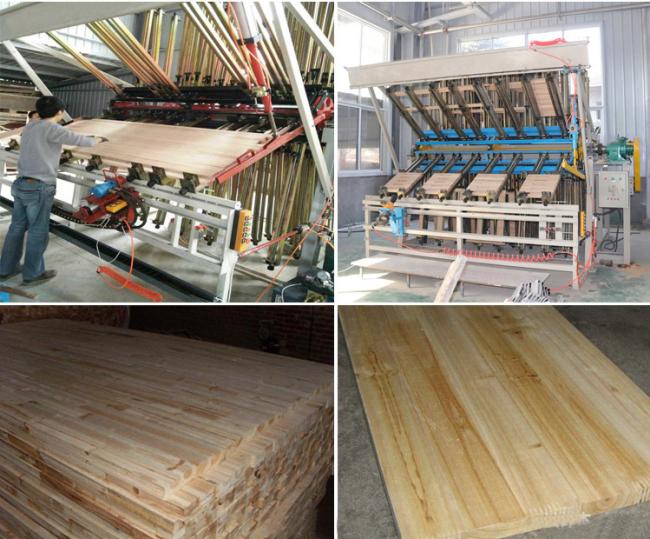

Working sample:
Package & Shipping:
If it is loaded by FCL, we shall pack woodworking composer by plastic film and wooden pallet. If it is loaded by LCL, it will be packed by wooden case.
 |
 |
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
