Charmhigh TM08 PCBA Manufacturing Machine SMT Pick And Place Machine 8 Heads 80 Feeders
Perfect High Speed High precision In-line 8 heads 80 feeders SMT pick and place machine Charmhigh TM08
PCB making machine, full-auto PCB assembly line, best quality in China, Chiense top brand Charmhigh
1. Model number: TM08
2. Brand: Charmhigh
3. Main configuration: Full automatic in-line + PCB auto delivery + 8 Heads 80 feeders + CPK detection passed + Panasonic servo motor + double Y axis + automatic nozzle changer + 11 cameras + THK Grinding screw + Thermal Compensation + Optimal speed: 35000CPH
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (2 options): 600mm(L) * 350mm(W) / 1200 *350mm (option)
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201/ 0402 / 0603-5050/ diode/ triode/ SOP/ QFP/ QFN/ BGA/ LED... to max 36*36mm IC

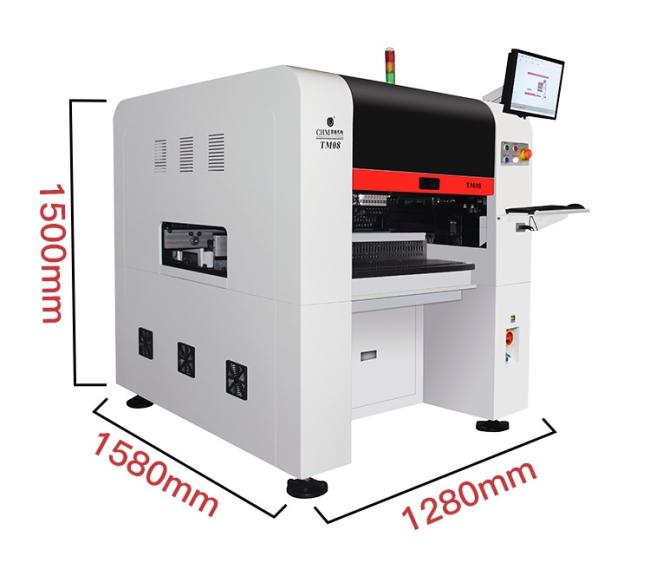

8. Dimension: 1280 (L) * 1580 (W) * 1500 (H) mm, AC220V (50hz, single phase)
9. Lead time: 3-5 working days
10. Delivery: by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Charmhigh YouTube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos
Charmhigh TM08 catalog download from:
Charmhigh TM08 parameters:
| Dimensions | 1280mm(L)x1580mm(W)x1500mm(H) |
| Weight | 1450kg |
| Power Supply | AC220V (50Hz, single phase), 3.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 8 |
| Mounting Speed | 35000cph (optimal) |
| Mounting Accuracy | ±0.05mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |

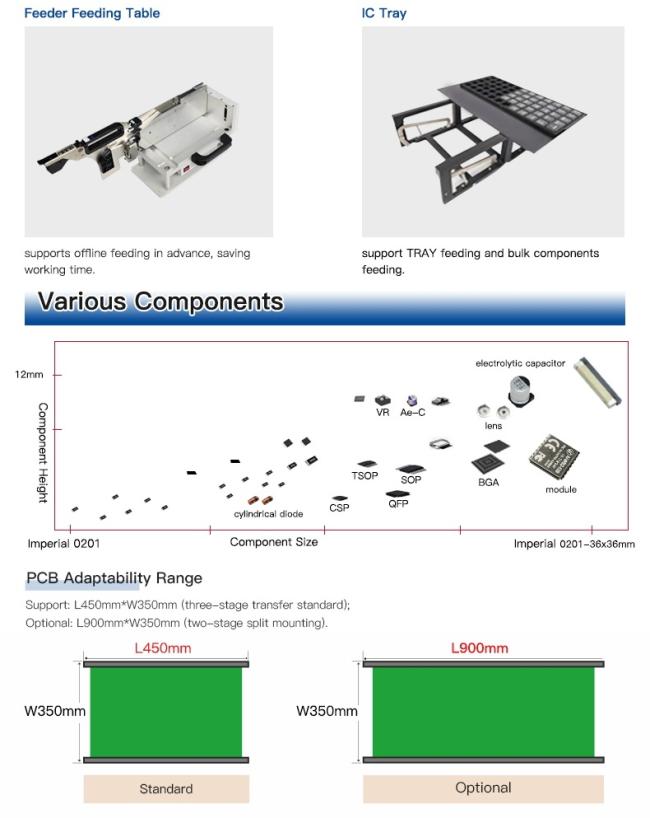

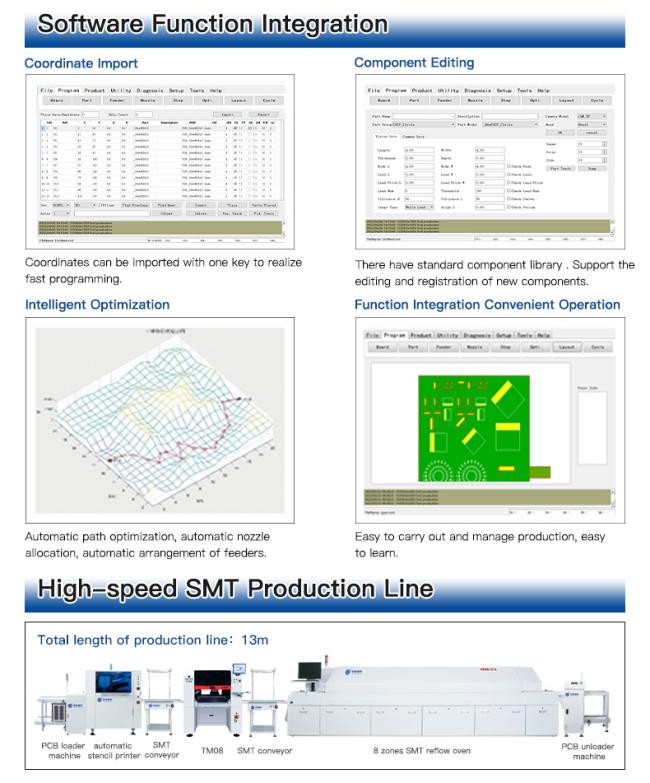

| PCB Size | 450mm(L)x350mm(W) (standard); 1200mm(L)x350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (31-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting ground screw and mute linear guide (Y axis with double screws) |

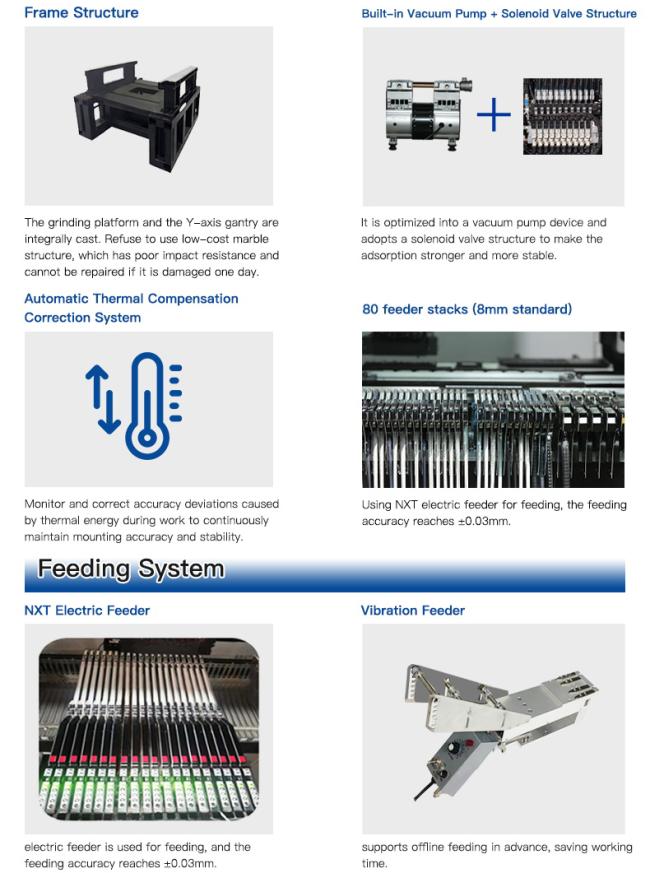

| Feeding System | 80 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camerax8 (component size applicable: 16mmx16mm); IC camerax1 (component size applicable: 36mmx36mm); Mark camerax2 |
Part list:
| Item | Quantity | Item | Quantity |
| TM08 Pick and place machine | 1 | Lubricating oil | 1 |
| Nozzles | 8 | Filter | 4 |
| Tool box | 1 | Quick connector | 1 |
| Warranty Card | 1 | Mouse Pad | 2 |
| User Manual | 1 | Power Cable | 2 |
| Test Report | 1 | Keyboard | 1 |
| Brush | 1 | Mouse Pad | 1 |
| Tweezer | 1 | LCD | 1 |

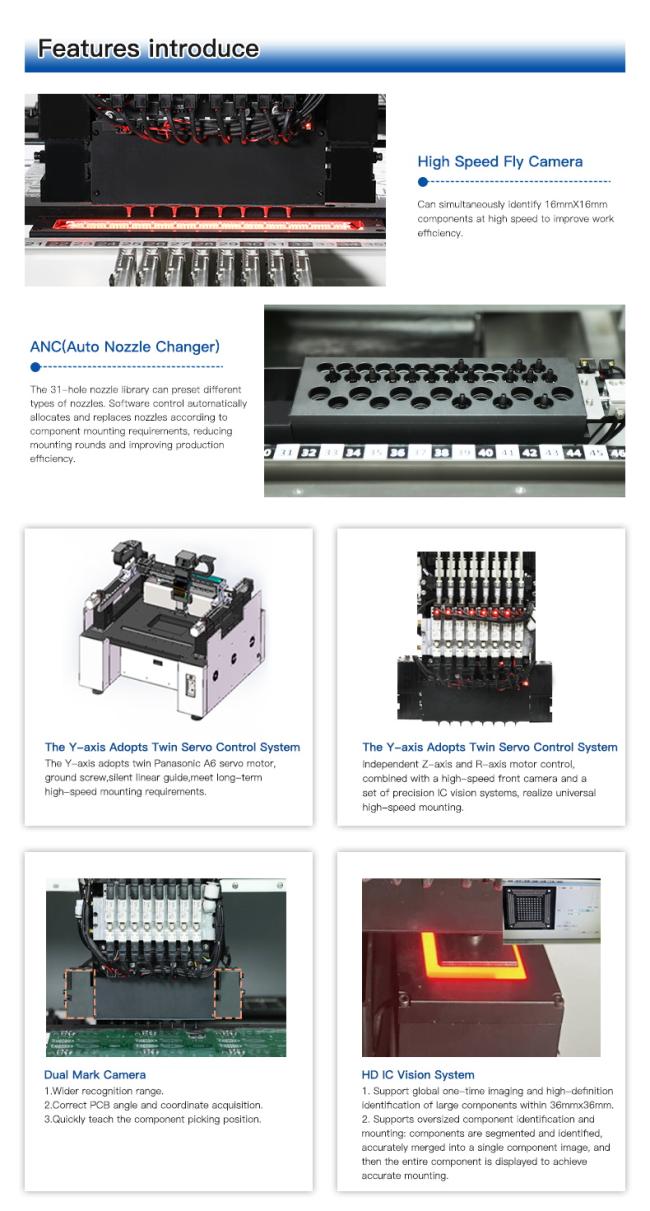

Charmhigh TM08, 8-head 80-feeder:
Charmhigh TM08: CPK detection passed, TM08: CPK≥1.0, high precision model:
What is CPK detection?
CPK refers to the process capability index, it is a measure of how consistent and accurate a pick-and-place machine is in its production, If the CPK is high, it means the machine is really good at placing components exactly where they need to be. But if the CPK is low, it might mean the machine is not so good at it, and there could be more mistakes in the assembly process. It tells us how stable the machine's quality is during manufacturing. Here is the relationship:
1 ≤ CPK < 1.33: normal
CPK ≥ 1.33: excellent
Summarize: CPK is a measure of how consistent and accurate a pick-and-place machine is in its production. Essentially, it tells us how stable the machine's quality is during manufacturing.

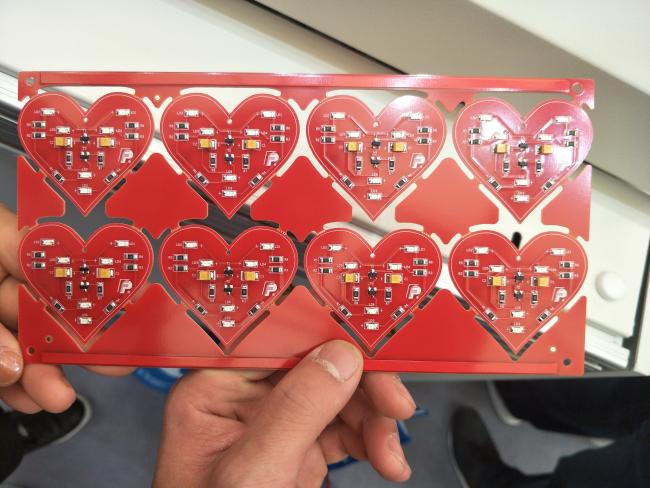

Sample:

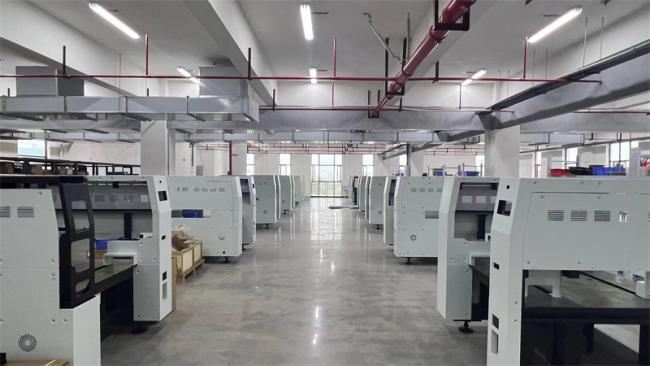

Charmhigh factory direct supply:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
