CHM-PC6635 Lead-free Reflow Oven with PC Control 6 Temperature Zones and 2200*350mm Heating Area for SMT Soldering
Price:
$5200
MOQ:
1
Delivery Time:
6-8 days
Brand:
Charmhigh
Product Description
CHM-PC6635 Rail + PC Control Lead-free Reflow Oven
2200*350mm 6 Temperature Zones Soldering Machine
Product Overview
Full automatic rail reflow oven with PC control featuring 6 temperature zones (up6+down6). This lead-free SMT reflow soldering machine is designed for precision soldering applications with a 2200*350mm working area and 5KW power capacity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PC6635 (PC, up6+down6, 350mm width) |
| Heating Zones | Up6 + Down6 |
| Heating Length | 2200mm |
| Cooling Zones | 2 |
| Max PCB Width | Mesh width 350mm, Rail adjustable 250mm |
| Conveyor Height | Mesh 880±20mm |
| Conveyor Speed | 0-2000mm/min |
| Power Supply | 5 wires 380V 50/60Hz |
| Startup Power | 24KW |
| Operating Power | Approx. 5-6KW |
| Control System | Industrial PC + monitor |
| Warm-up Time | Around 20 minutes |
| Temperature Range | Room Temperature - 350℃ |
| Temperature Control Precision | ±1℃ |
| Temperature Distribution Error | ±3℃ |
| Net Weight | Approx. 400kg |
| Dimensions (L*W*H) | 3600*700*1430mm |
Key Features
- Patented heating wire technology with independent circulating air structure for high thermal efficiency
- Dedicated high-temperature motor from Taiwan San Yue for balanced hot air distribution
- Unique air duct design with imported snail shell air circulation and three-layer air distribution
- Two forced cooling zones with cooling air temperature reaching as low as 5°C
- Suitable for adjusting temperature curves of various models with dual or triple welding zone configurations
- Dedicated transport guide rails made of high-temperature resistant aluminum alloy
- Variable frequency speed control with imported Japanese Dongchuan motors
- Industrial computer control with LCD monitor and Windows 10 operating system
- Uninterruptible power supply (UPS) function to prevent PCB damage during power outages
- All electrical components made of imported parts with shielded signal lines

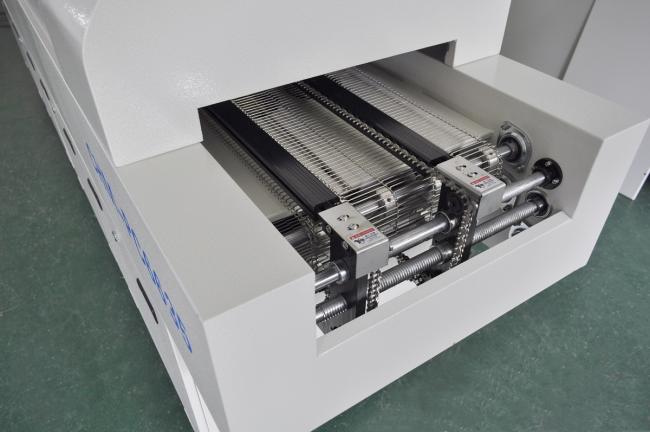

Product Images
Recommended SMT Production Line
- PCB loader
- E6 solder paste printer
- PCB conveyor
- CHM551P pick and place machine - two units
- PCB conveyor
- PC6635 reflow oven with automatic rail+PC
- PCB unloader
Warranty & Support
Complete machine warranty: 1 year from purchase date with lifetime service
We provide spare parts, factory direct supply, and reliable technical support
Online Q/A and troubleshooting support with one-to-one after-sales service
Each machine 100% tested before shipment
Technical Support Contact
Kimi Liu
WhatsApp & Mobile: +86 135 106 75756
Email: kimi@charmhigh-tech.com
For more information and videos, please contact us by email. We respond promptly.
