CHM-863 BGA 0201 12 Heads 100 Feeders SMT PCB Production Line
CHM-863 High Speed PCB assembly line 12 Heads 100 feeders, SMT for BGA, 0201
Perfect high speed model Charmhigh CHM-863
12 Heads 100 feeders Full In-line SMT Pick and place Machine, new smart software
PCB assembly line - for batch production
1. Model number: CHM-863
2. Brand: Charmhigh
3. Main configuration: Vertical type + PCB auto delivery + 12 Heads 100 feeders + Panasonic servo motor + nozzle changer + 15 cameras + THK Grinding screw
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (3 options): 450*380mm / 800*380mm/ 1200*380mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.
8. 1600(L)x1430(W)x1530(H), AC380V (50/60Hz, 3 phase)
9. Lead time: 7-9 working days
10. Delivery: by air / by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Charmhigh CHM-863:
| Dimension | 1600mm(L) x 1430mm(W) x 1530mm(H) |
| Net weight | 1600Kg |
| Voltage | AC380V(50Hz/60Hz) |
| Power | 4.5KW |
| Air compressor | 0.5~0.7 M pa |
| Head | 12pcs(go down to pick up at the same time) |
| Components supported |
Capacitor & Resistor (0402~18mmx18mm), SOT, SOP, QFN, QFP, LED, BGA... |
| Nozzle | Samsung nozzle |
| Nozzle library | 37 position (nozzle auto change) |
| Feeder slot | 100pcs slots (8mm) |
| Feeder type | FUJI NXT electric feeder |
| PCB delivery | 3 pieces auto delivery |
| PCB support | Roof platform, thimble |
| X, Y1, Y2 axis | Panasonic servo motor, THK Screw rod and guide rail |
| IC camera | Five million pixels, component max range 35mmx35mm |
| Flying camera | One million pixels x 8pcs (high speed), component max range 18mmx18mm |
| MARK camera | One million pixels x 2 cameras |
| Placement precision | Chip: ±50μm /3σ (CPK≥1.0); QFP: ±40μm /3σ(CPK≥1.0) |
| Optimal speed | 43000 CPH |
| Max component height | 12mm |
| PCB thickness | 0.6~3.5mm |
| PCB Size |
Min: 50mm(L) x50mm(W) ~ Max: 430mm(L)x350mm(W) or 800mm(L) x 350mm(W) (2 options) |

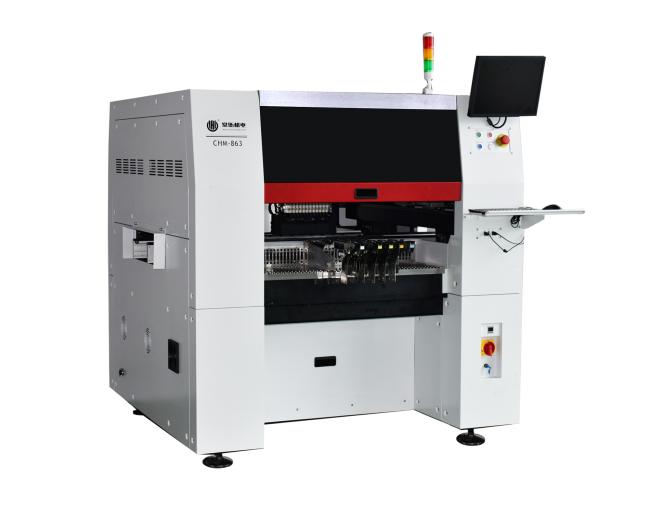

Real photo for CHM-863:
100 feeder slots (Work with Fuji NXT electric feeder):

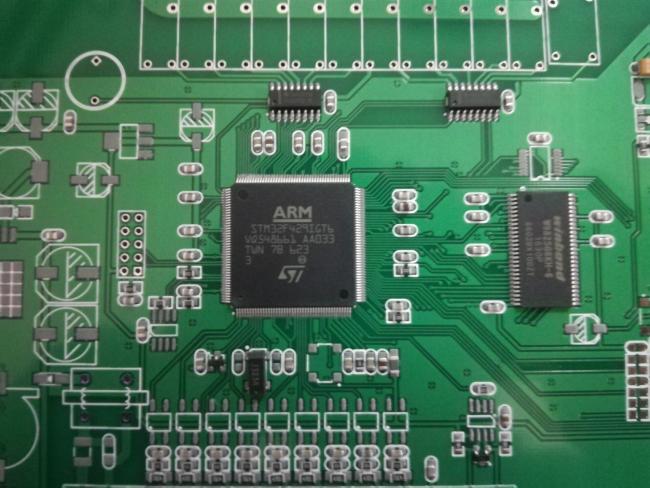

Samples:
Charmhigh factory direct supply:

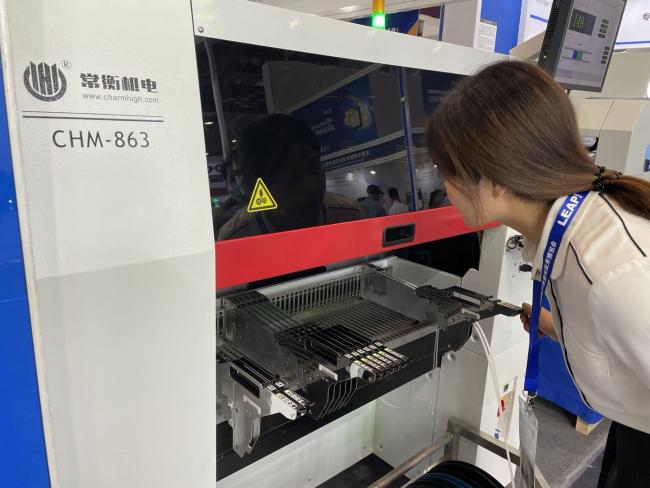

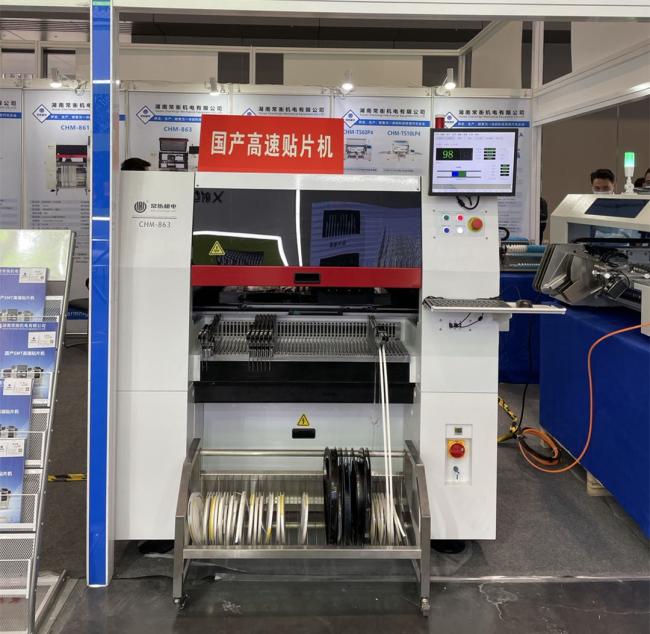

Charmhigh exhibition 2020 in Shenzhen:
Package Weight: 2000 kg
Package Size: 160cm x 172cm x 175cm
Packing: wooden case (safe packing)
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
