Heavy Duty Flexible Gravity Roller Conveyor for warehouse
Description
Heavy Duty Flexible Gravity Roller Conveyor for warehouse are designed for versatility.They are exceptional for truck loading and unloading,retail stores,shipping areas,loading docks and plant floors.
Features
- Self Tracking-Cartons follow the twists and turns of the conveyor path without using engineered curves.
- Detachable Round Tubing Legs-Exclusive heavy-duty round tubing legs for longer service life and reduce packing size.
- Adjustable Height-Simply turn the locking knob to raise and lower the conveyor bed height.
Specifications
Gravity Flexible Roller Conveyors applied in loading docks/plant floors/shipping areas
Conveyor Width:400-1000mm
Conveyor Height:700-1000mm or 800-1200mm
Conveyor Length:1m-10m,optiona
Load Capacity:95kg/m

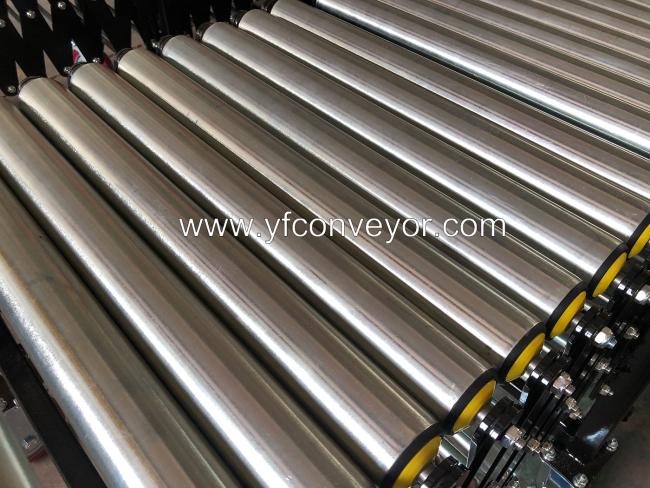

Roller Materials:steel/plastic
Roller Width:400-1000mm
Roller Diameters:38mm,45mm,50mm
Roller Numbers:9pcs/m
Wheels/Casters:swivel casters,lockable casters
Structure:Roller Conveyor
Type:Gravity Conveyor
Condition:New
Model Number:WS
MODEL LIST
| Model | Open Length (mm) |
Close Length (mm) |
Width (mm) |
AdjustableHeight (mm) |
Max.Load (kg/㎡) |
| FGR-H4 | 4800 | 2040 | 600,700,800 | 700-1000 | 95 |
| FGR-H6 | 6000 | 2550 | 600,700,800 | 700-1000 | 95 |
| FGR-H7 | 7200 | 3060 | 600,700,800 | 700-1000 | 95 |
| FGR-H8 | 8400 | 3570 | 600,700,800 | 700-1000 | 95 |
| FGR-H9 | 9600 | 4080 | 600,700,800 | 700-1000 | 95 |
| FGR-H10 | 10800 | 4590 | 600,700,800 | 700-1000 | 95 |
| FGR-H12 | 12000 | 5100 | 600,700,800 | 700-1000 | 95 |
| FGR-H13 | 13200 | 5610 | 600,700,800 | 700-1000 | 95 |
| FGR-H14 | 14400 | 6120 | 600,700,800 | 700-1000 | 95 |
| FGR-H15 | 15600 | 6630 | 600,700,800 | 700-1000 | 95 |
| FGR-H16 | 16800 | 7140 | 600,700,800 | 700-1000 | 95 |
| FGR-H18 | 18000 | 7650 | 600,700,800 | 700-1000 | 95 |
| FGR-H19 | 19200 | 8160 | 600,700,800 | 700-1000 | 95 |
| FGR-H20 | 20400 | 8670 | 600,700,800 | 700-1000 | 95 |
Contact Us
Ningbo YiFan Conveyor Equipment Co.,Ltd.
Email:sales@yfconveyor.com
Web: www.yfconveyor.com
Mob:+86 139 5824 8487
- YES, quickly and easily join together by hooks
- Can the width be customized?
- YES
- What is the Min.width do you have?
- 350mm
- What is the Max.width do you have?
- YES
- Is the height adjustable?
- YES, 700-1000mm or 800-1200mm
- Can the height be customized?
- YES
- Do you have stainless steel 304 rollers?
- YES
- Do you have PVC rollers?
- YES
- How many KGS can this conveyor carry?
- 50KGS per square meter
- What products can this conveyor be used to load?
- Cartons,boxes with FLAT & HARD bottoms
- How do you dispatch this conveyor?
- Dispatch it completely
- How many countries have you sell this conveyor to?
- UK,America,France,Canada,Russia,Romania,Chile,Jordan,UAE,Spain,Qatar,Kenya,South Africa,Iran,Pakistan,Vietnam,Philippines,etc.
- How long is the delivery time?
- 10-15 days
- How long is the warranty?
- 1 year
- Do you supply OEM & ODM service?
- YES
- Do you have user’s guide and maintenance instruction?
- YES
- What are the necessary spare parts we should keep?
- wheels,screws
