Expandable Motorized Rubber coated Flexible Roller Conveyor
Product Description
Expandable Motorized Rubber coated Flexible Roller Conveyor,provides a positively driven, heavy duty, live roller conveyor.
Because the chain sprocket conveyor, so it is the best choice to transport 50 kg rice bag, fertilizer bag,pallets, container, bucket and other heavy loads.
Product Advantages
This roller conveyor is mainly composed of conveyor frame, steel bin, conveyor supporting leg and driving power device.It has the characteristics of large conveying capacity, fast conveying speed and stable operation.
Model List
| Model | Open Length (mm) |
Close Length (mm) |
Width (mm) |
Adjustable Height |
Variable Speed |
Max.Load (kg/㎡) |
Motor Power |
| FPR-RV-4 | 4800 | 1840 | 600,700,800 | 700-1000 | 10-20 | 95 | 450 |
| FPR-RV-6 | 6000 | 2300 | 600,700,800 | 700-1000 | 10-20 | 95 | 540 |
| FPR-RV-7 | 7200 | 2760 | 600,700,800 | 700-1000 | 10-20 | 95 | 630 |
| FPR-RV-8 | 8400 | 3220 | 600,700,800 | 700-1000 | 10-20 | 95 | 720 |
| FPR-RV-9 | 9600 | 3680 | 600,700,800 | 700-1000 | 10-20 | 95 | 810 |
| FPR-RV-10 | 10800 | 4140 | 600,700,800 | 700-1000 | 10-20 | 95 | 900 |
| FPR-RV-12 | 12000 | 4600 | 600,700,800 | 700-1000 | 10-20 | 95 | 990 |
Picture show
Package Stop.
There is a package stop on one side of the conveyor to prevent packages falling down due to sliding to the end. In addition, this package stop can serve as a handle, when you push/ pull the conveyor.
Support Legs.
The height of support legs is adjustable by turning each black handle, and can form an inclined conveying surface. Even floor isn’t even, flexible expandable conveyor can stand stably and handle packages smoothly. Thus it can keep the packaging flow smoothly and reduce the labor strength of operators.

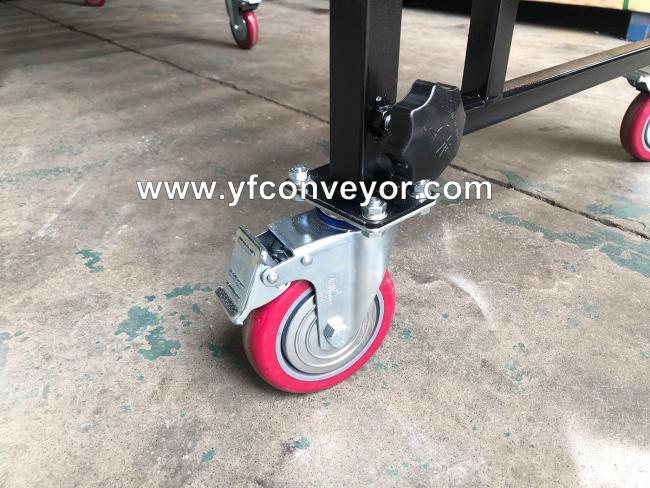

Castors.
We use heavy-duty swivel and flexible expandable conveyor,each brake makes it stand firm.
