Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement for Roland Akiyama
Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement for Solna Roland KBA Komori Mitsubishi Akiyama Ryobi Sakurai Nebiolo,Castagnoli VS650,Didde VIP,GOSS, sheet fed offset printing press,web offset machine or label printing machine and it can replace TECHNOTRANS, BALDWIN, ROYCE,KOMPAC,etc. Recirculation & Refrigeration.
It can be used for the following power supply:
1. 380V 50/60 Hz 3ph
2. 400V or 415V 50/60 Hz 3ph
- Model:RL-550-AZ/AZP/B Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement
RL-550 Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement is used for following sheet fed offset printing press:
52cm*5 color
65cm*2 color
It is designed for 520mm, less than 6 color printing machines
Specification:
Tank Capacity:55L
Dimension:560 x 630 x 1050mm
Weight:103Kg
Unit Power:3/PE AC 380V 50Hz 5.0A
Pump Power:380V 50Hz 0.52A
Pump Capacity:180W 46L/Min
Refrigerator Power:380V 50 Hz 4.3A
Cooling Capacity:2400W
Refrigerant:R22 or R134A
Range of Temperature setting :+7°C～+50°C
Operating temperature:+5°C～+36°C
Dampening solution additive control range:1%~5%
| Product Model | RL-550AZ | RL-550AZP | RL-550B |
| Automatic Temperature Control | Yes | Yes | Yes |
| Automatic Alcohol Distribution | Yes | Yes | No |
| Fountain Solution percentage Additive Control | No | Yes | No |
| Intermediate Water Tank (Bubble Deduction) | Yes | Yes | Yes |
2.Model: RL-750-AZ/AZP/B Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement
RL-750 Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement is used for following sheet fed offset printing press:
65cm*4 color
102cm*2 color
It is designed for 740mm, less than 4 color printing machines
Specification:
Tank Capacity:75L
Dimension:650 x 680x1250
Weight:143Kg
Unit Power:3/PE AC 380V 50Hz 5.0A
Pump Power:380V 50Hz 0.68A
Pump Capacity:250W 46L/Min
Refrigerator Power:380V 50 Hz 4.3A
Cooling Capacity:4000W
Refrigerant:R22 or R134A
Range of Temperature setting :+7°C～+50°C
Required Operating temperature:+5°C～+36°C
Dampening solution additive control range:1%~5%
| Product Model | RL-750AZ | RL-750AZP | RL-750B |
| Automatic Temperature Control | Yes | Yes | Yes |
| Automatic Alcohol Distribution | Yes | Yes | No |
| Fountain Solution percentage Additive Control | No | Yes | No |
| Intermediate Water Tank (Bubble Deduction) | Yes | Yes | Yes |
3.Model: DECO 8 (original RL-1100-AZ/AZP/B/PB/PB2) Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement
DECO 8 (original RL-1100) Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement is used for following sheet fed offset printing press:
74cm*5 color
It is designed for 740mm, less than 5 color printing machines
Specification:
Tank Capacity:110L
Dimension:850x 680 x1250mm
Weight:160Kg
Unit Power:3/PE AC 380V 50Hz 5.5A
Pump Power:380V 50Hz 0.68A
Pump Capacity:250W 46L/Min
Refrigerator Power:380V 50 Hz 4.8A
Cooling Capacity:5000W
Refrigerant:R22 or R134A
Range of Temperature setting :+7°C～+50°C
Required Operating temperature:+5°C～+36°C
Dampening solution additive control range:1%~5%
| Product Model | RL-1100AZ | RL-1100AZP | RL-1100B | RL-1100PB |
| Automatic Temperature Control |
Yes | Yes | Yes | Yes |
| Automatic Alcohol Distribution |
Yes | Yes | No | No |
| Fountain Solution percentage Additive Control |
No | Yes | No | Yes |
| Dual-Pumps system | No | No | No | No |
| Bubble Deduction Intermediate Tank |
Yes | Yes | Yes | Yes |

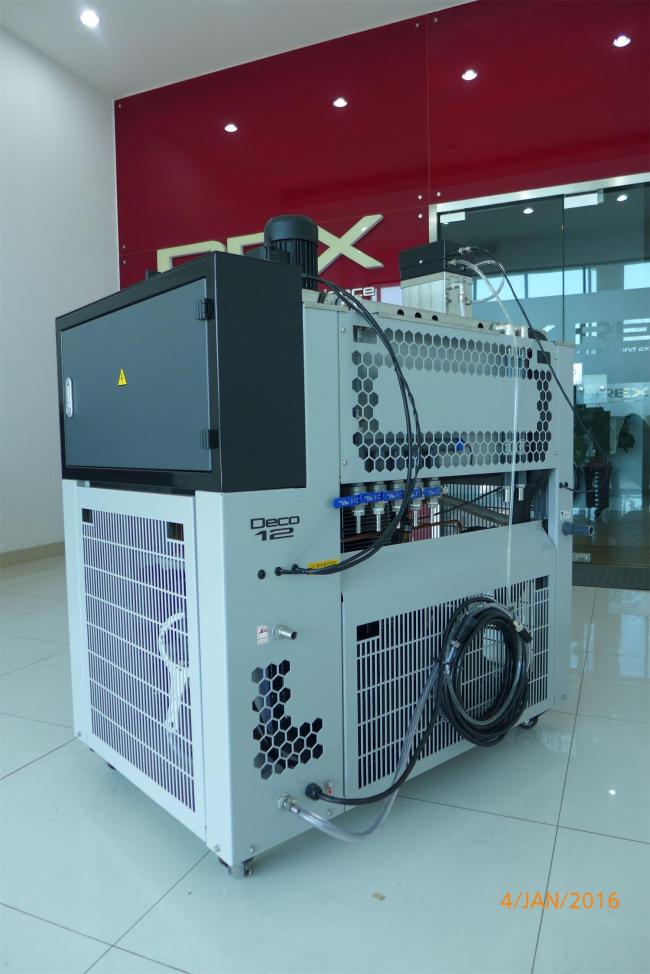

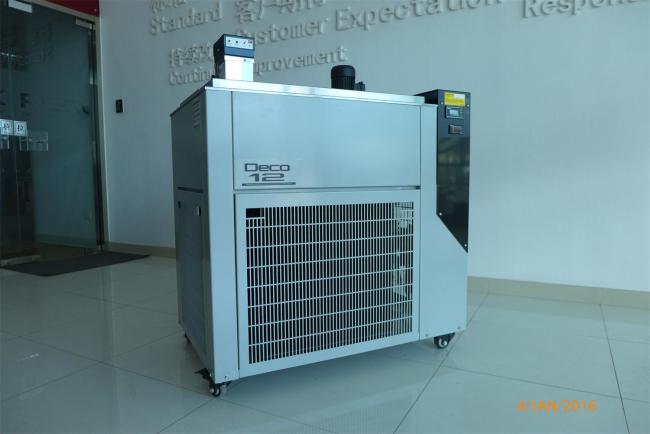

4.Model: DECO 12 (ORIGINAL RL-1500-AZ/AZP/PB/PB2) Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement
DECO 12 (ORIGINAL RL-1500) Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement is used for following sheet fed offset printing press:
102cm*4color
It is designed for 1020mm, less than 5 color printing machines, commercial web machine or single tower newspaper printing machines
Specification:
Tank Capacity:140L
Dimension:1150 x 750x 1250mm
Weight:180Kg
Unit Power:3/PE AC 380V 50Hz 6.3A
Pump Power:380V 50Hz 0.68A
Pump Capacity:250W 46L/Min
Refrigerator Power:380V 50 Hz 5.6A
Cooling Capacity:7000W
Refrigerant:R22 or R134A
Range of Temperature setting :+7°C～+50°C
Required Operating temperature:+5°C～+36°C
Dampening solution additive control range:1%~5%
| Product Model | RL-1500AZ | RL-1500AZP | RL-1500B for commercial web machine or single tower newspaper printing machines | RL-1500PB2 for commercial web machine or single tower newspaper printing machines |
| Automatic Temperature Control |
Yes | Yes | Yes | Yes |
| Automatic Alcohol Distribution |
Yes | Yes | No | No |
| Fountain Solution percentage Additive Control |
No | Yes | Yes | Yes |
| Dual-Pumps system | No | No | No | Yes |
| Bubble Deduction Intermediate Tank |
Yes | Yes | Yes | Yes |
5. Model: DECO 15 (ORIGINAL RL-1800-AZ/AZP/PB2) Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement
DECO 15 (ORIGINAL RL-1800) Alcolor Vario Damping,Technotrans Refrigeration and Recirculation Replacement is used for following sheet fed offset printing press:
130cm*4-6color
It is designed for large sheet fed offset press, commercial web machine or double towers newspaper printing machines
Specification:
Tank Capacity:180L
Dimension:1250 x750 x 1300mmD
Weight:275Kg
Unit Power:3/PE AC 380V 50Hz 14.4A
Pump Power:380V 50Hz 0.68A
Pump Capacity:250W 46L/Min
Refrigerator Power:380V 50 Hz 13A
Cooling Capacity:12000W
Refrigerant:R22 or R134A
Range of Temperature setting :+7°C～+50°C
Required Operating temperature:+5°C～+36°C
Dampening solution additive control range:1%~5%
| Product Model | RL-1800AZ | RL-1800AZP | RL-1800PB2 for commercial web machine or double towers newspaper printing machines |
| Automatic Temperature Control |
Yes | Yes | Yes |
| Automatic Alcohol Distribution |
Yes | Yes | No |
| Fountain Solution percentage Additive Control |
No | Yes | Yes |
| Dual-Pumps system | No | No | Yes |
| Bubble Deduction Intermediate Tank |
Yes | Yes | optional |
