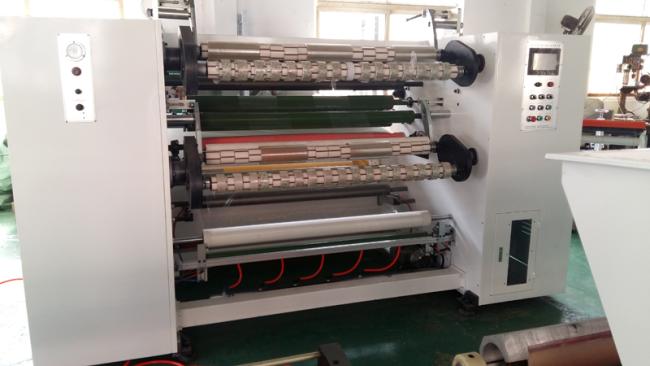

XMY008 Big diameter BOPP Tape Slitter rewinder,scotch tape making machine,tape production line
Description
Feature
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.
2. Stepless speed regulation of frequency conversion and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stall when operating at high speed.
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.
4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.
5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.
6. (Optional) Auto labeling and slitting stationery tape functions.
Main Technical Parameters
| model | XMY008-1300 | XMY008-1600 |
| Effective width | 1320 mm | 1620 mm |
| max. unwind diameter | 800mm | 800mm |
| min. slitting width | 12mm | 12mm |
| max. rewind diameter(shaft3") exchange 4 shafts | 400mm | 400mm |
| machine speed | 0-180m/min | 0-180m/min |
| slitting blade | 0.2×22×60mm | 0.2×22×60mm |
| main power | 7KW |
7KW
|
