BOPP adhesive tape slitting machine, Four shaft exchange BOPP adhesive tape slitting machine

Price Negotiable

Price: Negotiable

MOQ: 1 SET

Delivery Time: 30 DAYS

Brand: XMY

Product Description

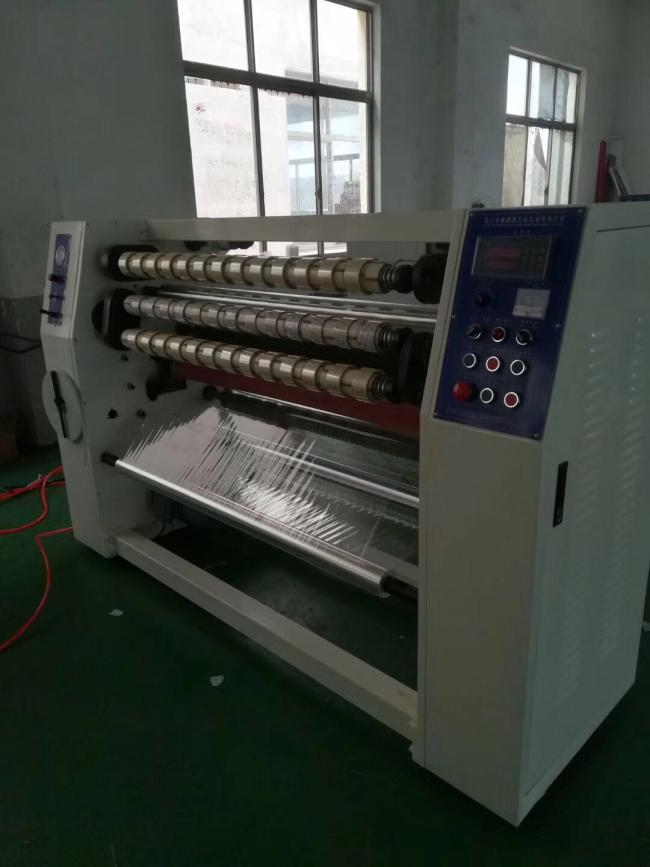

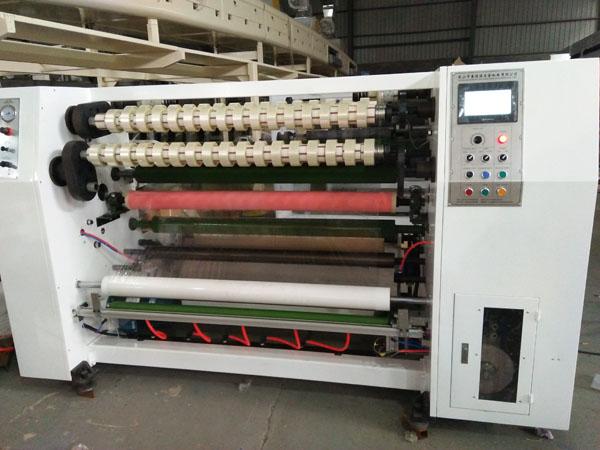

BOPP adhesive tape slitting machine

XMY008 Four shaft exchange BOPP adhesive tape slitting machine

Description

Feature

1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.

2. Stepless speed regulation of frequency conversion and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stall when operating at high speed.

3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.

4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.

5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.

6. (Optional) Auto labeling and slitting stationery tape functions.

Main Technical Parameters

model	XMY008-1300	XMY008-1600
Effective width	1320 mm	1620 mm
max. unwind diameter	800mm	800mm
min. slitting width	12mm	12mm
max. rewind diameter(shaft1") exchange 4 shafts	75mm	75mm
max. rewind diameter(shaft3") exchange 4 shafts	150mm	150mm
max. rewind diameter(shaft3") exchange 2 shafts	300mm	300mm
machine speed	0-180m/min	0-180m/min
slitting blade	0.2×22×60mm	0.2×22×60mm
main power	5.5KW	5.5KW
