Servo Drive Rotary-blade Sheeter Machine DFJ-1900E
Price:
Negotiable
MOQ:
ONE SET
Delivery Time:
45 WORK DAYS
Product Description

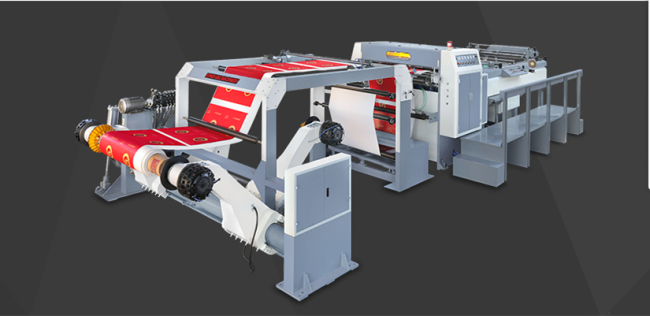

Servo Drive Rotary-blade Sheeter Machine DFJ-1900E

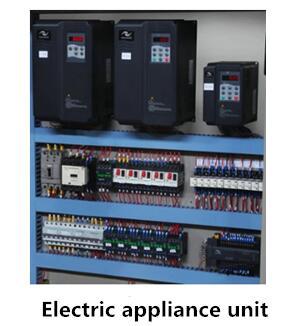

DFJ-1900E servo drive rotary-blade paper sheeter machine is developed and innovated upon domestic and foreign advanced technology. The machine computer control system adopts servo motor and inverter (YASKAWA); the electrical system adopts Schneider and OMRON; the bearings adopt German FAG, and Germany imported tungsten steel cutter could be option: the cutter is faster, more stable and with higher precision; touch screen computer interface control, easy operation.
Specification of Servo Drive Rotary-blade Sheeter Machine DFJ-1900E
| Model | DFJ-1900E |
| Max Cutting Width | 1900MM |
| Max Unwinding Diameter | 1800MM(71") |
| Thickness Range of Paper | 60-550g |
| Cutting Method | The up knife cut reciprocally and the down knife is fixed |
| Max Sheeting Speed | 400cuts/min(pre-press), 200cuts/min(post-press) |
| Max Feeding Speed | 400M/Min(pre-press), 200M/Min(post-press) |
| Cutting Length Range | 450-1650mm |
| Cutting Precision | The cutting length≤1200: ±0.3MM;The cutting length＞1200: ±0.1MM; Post-press: ±0.3MM |
| Slitting Format | 1/2 sheets |
| Max Piling Height | 1500MM |
| Request for Air Source | |
| Total Power | 45KW |
| Voltage | AC380V/220V, 50/60HZ |
| Gross Weight | 16T |
| Overall Dimension(LxWxH) | 4500X1200X1900MM |
