Central dampening solution cooling and circulator for MITSUBISHI 72x102cm, 5 color printing machines

Price Negotiable

Price: Negotiable

MOQ: ONE SET

Delivery Time: 45 WORK DAYS

Brand: REX

Product Description

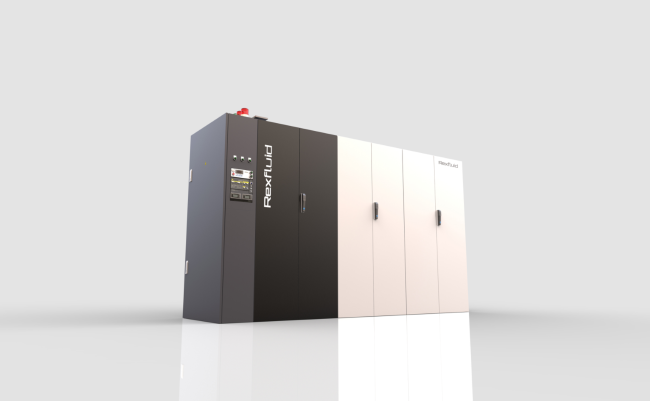

Central Dampening management system Deco C30 series

Central dampening solution cooling and circulator Deco C30 SF with R22 refrigerant for Mitsubishi Offset Press 5 Colors 3F-428D (1991) (UV Ink) 72 x 102cm,Mitsubishi Offset Press 2 Colors 3F-1488 (1998) (Normal Ink) 72 x 102cm,Mitsubishi Offset Press 5 Colors D3000LS-5 (2005) (Normal Ink) 72 x 102cm for Power Supply 380V,3 phase, 50/60HZ

-central dampening solution cooling

-central dampening solution circulation

-central additive control

-central IPA control

-central PH and conductivity display

Model :Deco C30 series
Items	Value we are offering
General requirement
completely pre-assembled, wired and tested	Tubes and pipes are connected in the printing factory.
mechanical, electricaland fluid interfaces	Power supuly:380v 50Hz 3PH
Qualified Quality system	ISO9001:2008 GB/T 19001-2008
Environment
Operating temperature	+10~45℃
Operating relative humidity (notcondensing)	30 – 95%
Geographic height	Under 3000m
Performance data
Temperature of dampening solution	Setting 10.5℃ before delivery and adjustable
Controller and display	Rex8810 standard controller and Facult Alarm Light
Water filling	Automatic level monitoring and water filling
IPA control	Automatic monitoring and IPA filling. No display
Dampening solution control	Automatic filling. Setting 0~5%
Conductivity	0~2000us
Refrigerant	R22
Tank Volume	≥220 Liters
Flow Rate	≥112Liters/m
Feeding pressure	1bar
Cooling capacity	≥17100kcal/h
Water quality fresh water	8dH
Water temperature fresh water	Max. 25°C
Dimension(mm)	L2250×D950×H1990
display	695kg

-Rex Mdos Fountain Solution Percentage Additive Control
-Rex Alcosta2 IPA control unit;
-Rex 2210 standard conductivity measure(~2000us); -Rex PH measure
