Log Cutting Saw Swing Twin Blade Sawmill Portable Circular Saw Mill Machine Dia 760mm
Hardlogs Wood Cutting Circular Saw Machine,Portable Swing blade angle circular sawmill with big motor power
Double Saw blade Angle Circular Swing Blades SawMill
- The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
- The Blades enables cutting in both directions,which considerably increases the cutting capacity.
- Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
- The angle circular saw is a machinethat:
- Produces lumber with saw-cut dimension accuracy up to ± 1mm
- Produces lumber of excellent surface quality
- Results in very low operational costs
- Electric invertor crane, computer touch screen for length calculation and remote control.
Specification:
- Max. sawing timber size : 300mm x 210mm
- Carbide circular blade diameter : 760mm , 546mm
- Log feeding : frequency auto feeding
| Technical Parameter | DS700 | DS1300 | DS2000 |
| Max Sawing Wood Diameter | 700MM | 1300MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM |
1*760mm 1*546mm |
| Motors Power(KW) |
11KW*2, 1.5KW*2, 2.2kw x 1 |
15KW*2, 1.5KW*1 2.2kw *1,3kw *1 |
22KW*1, 15KW*1 1.5KW*1 ,2.2kw *1 3kw *1 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 3000KG |

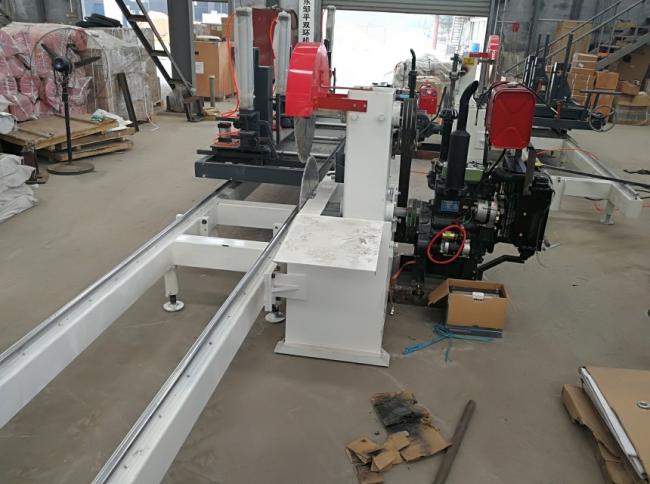

Photos:
Hot Selling Products:
Twin blades sliding table sawmill - Electrical manual type
| model | TT1500 | TT2000 | TT3000 |
| Cut log max. diameter | 400mm | 400mm | 400mm |
| Cut length | 1.5m | 2m | 3m |
| Blade diameter | 500mm | 500mm | 500mm |
| Main Motor power | 7.5KW*2 | 7.5KW X 2 sets | 7.5KW X 2 sets |
| Track length | 3000mm | 5000mm | 6000mm |
| Log clamping | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
| Carriage Rail Mode | Linear Axis | Linear Axis | Linear Axis |
| Feeding mode | Manual | Manual | Manual |
| Setting size mode | Manual | Manual | Manual |
Twin blades sliding table sawmill -computer type
Twin blades sliding table sawmill - Diesel engine type
MJ109 Woodworking Circular Table Saw
Multi Blades Rip Saw
Introduction:
- with Infrared positioning
- for board edges cutting
- sawing planks into small pcs
- easy usage, no installation
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
- with Infrared positioning
- for big thickness board edger cutting
- high working efficiency, low cost ,fulfil the max. value of the wood
- easy usage, no installation
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
