Pneumatic Wood Pallet Machine Semi-automatic Nailer Wood Sawdust Block Pallet Making Machine
Boost Pallet Production to 400 Units per Day with One Operator
Maximize your output and minimize labor costs with our Semi-automatic European Pallet Pneumatic Nailing Table. This isn't just a machine; it's a productivity partner engineered to empower a single operator to build an impressive 240 to 400 pallets within an 8-hour shift. By automating the heaviest and most repetitive tasks, we deliver unparalleled efficiency, dramatic ergonomic improvements, and a rapid return on investment.
A universal pneumatic nailing table, Semi-automatic European Pallet Pneumatic Nailing Table features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
- Easy to use One operator can build 240-400 pallets within 8 hours
- Compact design Total footprint 3.3 m² (35.5 ft²)
- Universal Adjustable worktop allows production of:
- Pallets on 2, 3, 4, or 5 stringers
- Efficient Quickly switch to any size pallet
- Pneumatic clamp Easily centers the blocks
- Pneumatic lift Raises pallet to minimize operator lifting
- Overhead roller track Nail guns can move freely during work
- Bottom template Template to build pallet legs
- Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
- Unique Diagonal table adjustment reduces work by 50%
- Only 2 Allen keys required to adjust the table
Technical specifications:
| Model | PT-1600 | PT-3300 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1600mm | 900-3300mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production efficiency | 30-40pcs /h | 30-40pcs /h |
| Number of beams | 3p (customized) | 5p (customized) |
| Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
| Weight | 650kg | 950kg |
| Size | 2400*980*1900mm | 4000*980*1900mm |

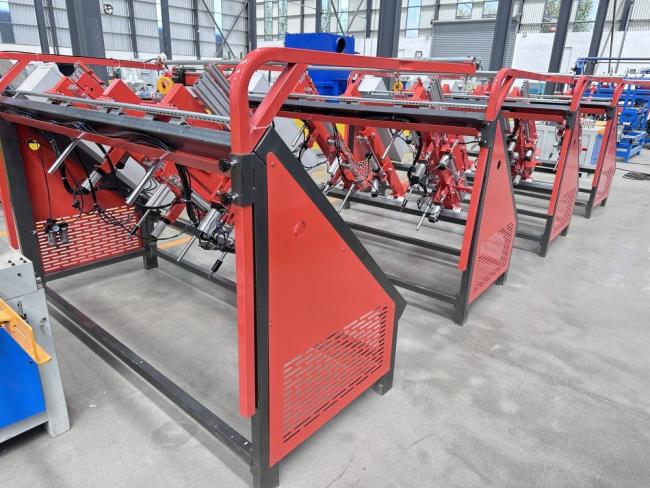

Detailed Images
Semi-Automatic Wood Pallet Nailing Machine/Euro Block Pallet Production Line
features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Technical specifications:
| AEPN-1400-1 Semi-automatic European pallet nailing machine | |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 700-1600mm |
| Nailing mode | manual |
| Working mode | PLC touching screen |
| Pallet returning mode | Electrical |
| Air pressure | 0.8MPA |
| Number of beams | 3p (or customized) |
| Number of nail guns | 2P (CN70,CN55) American Stanley staple gun |
| Main motor power | 5kw |
| Wood Pallet Turning Machine | |
| Turning speed | 4-8s/time |
| Wood Pallet Automatic Palletizer | |
| Palletizing capacity | 20pcs pallets |

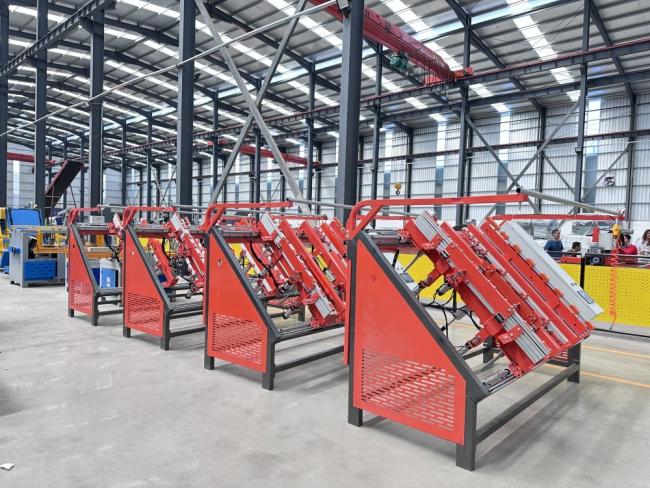

Detailed Images
Built for Reliability, Backed by Trustworthy Support
We engineer our equipment for long-term, dependable performance. This universal pneumatic nailing table is supported by a robust warranty and accessible customer service, ensuring your investment is protected and your production line remains operational.
Ready to revolutionize your pallet manufacturing efficiency and empower your workforce?
Contact us today to request a personalized demonstration and a detailed quote. Let us show you how our solution can directly address your production challenges.
