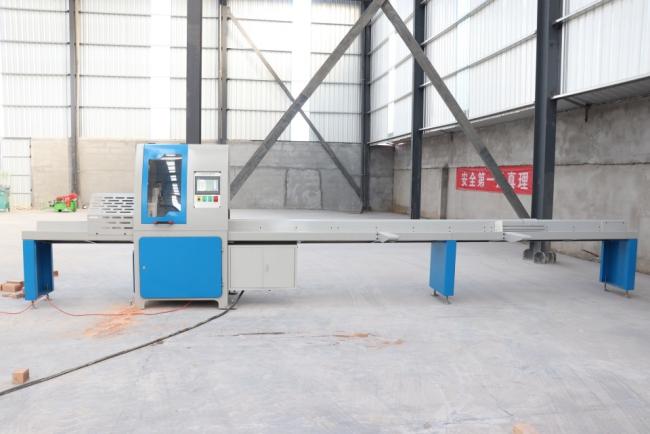

Automatic Log Cutting Saw / Automatic Feeding Crosscut Saw for Logs
Product Overview:
This Automatic Log Cutting Saw, also known as an Automatic Feeding Crosscut Saw, is a high-efficiency industrial machine designed for the wood processing industry. It is engineered to automatically transport long logs and cut them into precise, specified lengths. This machine significantly boosts productivity by automating the entire feeding and cutting process.
Key Features & Specifications:
-
Automated Feeding System: Equipped with a heavy-duty infeed rack (6 meters in length) and an outfeed rack to ensure continuous, smooth, and reliable material handling.
-
High-Efficiency Cutting: Features a large-diameter circular saw blade of 1200mm, capable of cutting through large-diameter logs up to 500mm.
-
Precision Control: Integrated with a user-friendly touch screen control panel for easy adjustment of cutting lengths and conveyor speeds, ensuring high accuracy and operational flexibility.
-
Industrial-Grade Durability: Constructed with a robust heavy-duty steel frame to guarantee stability and long-lasting performance under the most demanding high-volume operations.
Technical Specifications:
| Model | DL6000-500 |
| Cutting wood max. Diameter | 500mm |
| Incoming wood length | 6000mm |
| Outgoing wood length | 300-3000mm |
| Feeding rack width | 4500mm |
| Feeding rack length | 4000mm |
| Feeding rack motor power | 3kw |
| Infeed V type roller conveyor length | 8000mm |
| Discharge V type roller conveyor length | 3500mm |
| Feeding motor | 3kw |
| Saw blade diameter | 1200mm |
| Saw blade motor power | 15kw |
| Operation | PLC auto setworks |
| Discharge mode | Pneumatic |
| Weight | 4000kgs |
Applications:
Ideal for sawmills, timber yards, and wood product manufacturers requiring reliable and precise cross-cutting of raw logs into uniform segments for further processing.
Related Wood Cutting Machines
Automatic Wood Cut off Saw Machine

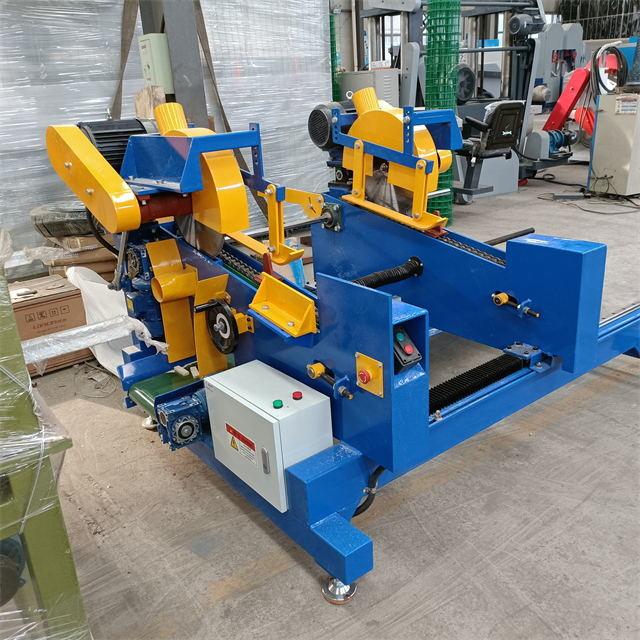

Double End Wood Trim Saw
High Speed Wood Cut Off Saw
Multi Head Heavy Duty Wood Cut Off Saw
FAQ:
Q1: Where is the Wood Log Cutting Machine manufactured?
A1: The Machine is manufactured in Shandong Province, China.
Q2: What is the minimum order quantity for the Wood Lot Cutting Machine?
A2: The minimum order quantity is 1 SET of the wood cutting Machine.
Q3: How long does it take to deliver the Wood Cutting Machine?
A3: The delivery time is within 20 days after the order is confirmed.
Q4: What payment methods are accepted for purchasing the Wood Cutting Machine?
A4: We accept T/T (Telegraphic Transfer) as payment methods.
Q5: How is the Wood Cutting Machine packaged for shipment?
A5: The machine is packaged suitable for container loading to ensure safe delivery.
