High-Efficiency Log Multi-Rip Saw Production Line | 250-500mm Large Diameter Wood Processing Plant | 120m³/8h Capacity
High-Efficiency Log Multi-Rip Saw Production Line | 250-500mm Large Diameter Wood Processing Plant | 120m³/8h Capacity
Compelling Product Description

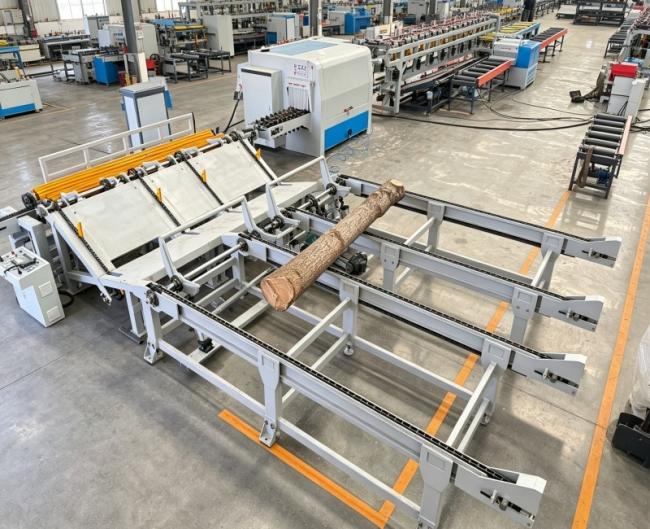

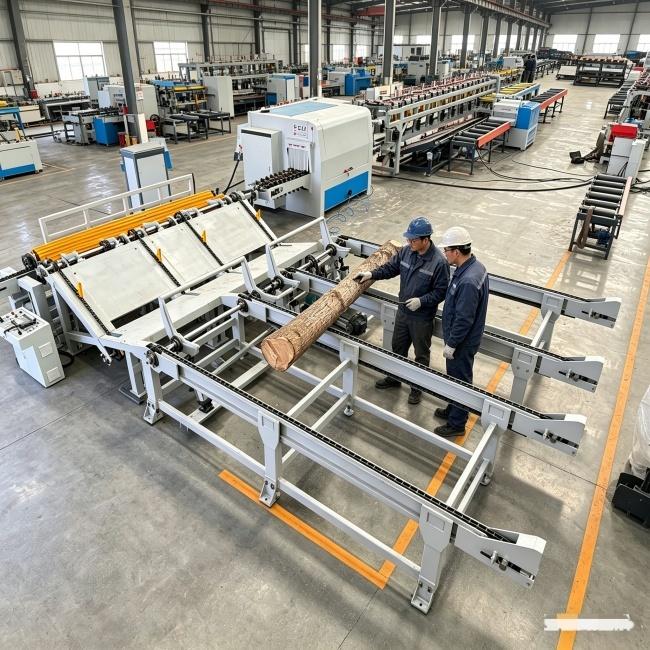

Maximize your sawmill’s ROI with our heavy-duty log multi-blade saw production line. Engineered specifically for large-scale timber processing, this system handles logs with diameters ranging from 250mm to 500mm and lengths up to 6000mm.
With a robust industrial design, this line delivers a massive production capacity of 80–120 m³ per 8-hour shift, making it the ideal solution for high-volume lumber manufacturers seeking to reduce labor costs and increase precision.
Key Technical Specifications
| Feature | Capability |
| Log Diameter Range | 250mm – 500mm |
| Maximum Log Length | 6000mm |
| Daily Output (8 Hours) | 80m³ – 120m³ |
| Blade Configuration | Multi-saw blade system for precision cutting |
| Application | Softwood & Hardwood processing, Pallet production, Construction timber |
| Model | SHYM500 |
| Sawing Log Diameter | 250-500mm |
| Min Sawing Log Length | 1000mm |
| Spindle speed | 2800r/min |
| Main Motor Power | 75kw,75kw |
| Feeding Motor | 3kw |
| Saw Blade Quantity | 2-10pcs |
| Saw Blade Diameter | 650mm |
| Discharge Electric-powered Side Pressure Roller | 2pcs |
Features:
-
Woodworking Machinery for Large Logs
-
Automatic Log Sawing Production Line
-
Log Multi-Rip Saw Price
-
High Yield Wood Sawing System
-
Industrial Log Breakdown Line
-
Timber Primary Processing Equipment
FAQ Section:
Q1: What is the maximum log size this machine can handle?
A: It processes logs up to 500mm in diameter and 6000mm in length.
Q2: What is the maximum log diameter and length this production line can process?
A: This heavy-duty production line is specifically designed for large-scale timber. It efficiently processes logs with a diameter max. 500mm and a maximum length of up to 6000mm or as customer needs, making it ideal for construction-grade lumber and large pallet materials.
Q3: Can this multi-saw blade line handle both hardwood and softwood?
A: Yes. The system is equipped with high-torque motors and specialized alloy saw blades that can be adjusted for different wood densities. Whether you are processing softwood (pine, spruce) or dense hardwood, the machine ensures a smooth finish and high dimensional accuracy.
Q4: What are the requirements for power supply and installation space?
A: Due to its industrial capacity, the line typically requires a 380V/50Hz (or customized) three-phase power supply. Regarding space, since it handles 6000mm logs, we recommend a factory layout that allows for seamless in-feed and out-feed. Contact our technical team for a detailed floor plan layout.
