DS1300 Swing Blade Sawmill 1300mm Wood Circular Saw Machine Portable
Price:
US $8,700 - 14,800 / Set
MOQ:
1 SET
Delivery Time:
within 15 days
Brand:
SH
Product Description

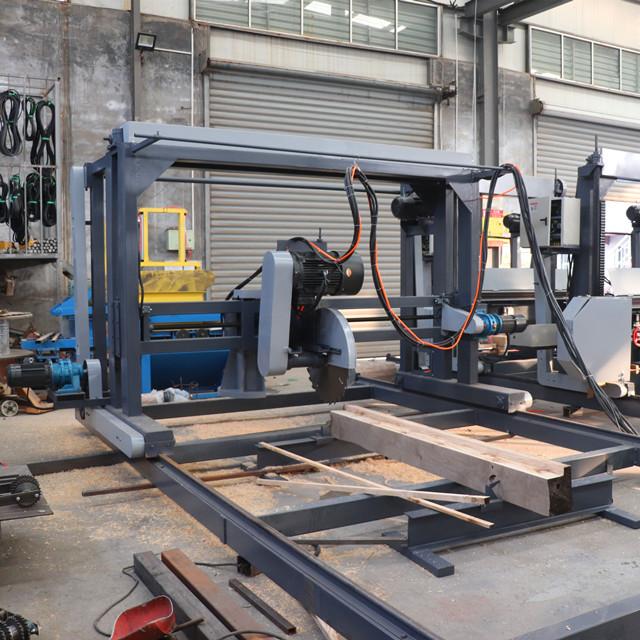

DS1300 Portable Swing Blade Sawmill Wood Sawmill, Twin TCT Saw Blades Wood Circular Saw Machine
Double Saw blade Angle Circular SawMill
- The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
- The Blades enables cutting in both directions,which considerably increases the cutting capacity.
- Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
- The angle circular saw is a machinethat:
- Produces lumber with saw-cut dimension accuracy up to ± 1mm
- Produces lumber of excellent surface quality
- Results in very low operational costs
- Electric invertor crane, computer touch screen for length calculation and remote control.
Specification:
- Max. sawing timber size : 300mm x 210mm
- Carbide circular blade diameter : 760mm , 546mm
- Log feeding : frequency auto feeding
| Technical Parameter | DS700 | DS1300 | DS2000 |
| Max Sawing Wood Diameter | 700MM | 1300MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM | 1*760mm 1*546mm |
| Motors Power(KW) | 11KW*2, 1.1KW*3 | 15KW*2, 1.5KW*3 | 22KW*1, 15KW*1 2.2KW*3 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 3000KG |
Photos:
Related Products
Wood Slasher
| Technical Parameter | DM1300 | DM1700 | DM1900 | DM2100 | DM2400 |
| Guide Plate Length(Meter) | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 |
| Max. cutting Diameter(Meter) | 1.5 | 1.5 | 1.7 | 1.9 | 2.2 |
| Motor(KW) | 3 | 4 | 4 | 5.5 | 5.5 |
| Weight(KG) | 190 | 200 | 230 | 250 | 270 |
| Chain length | 52 blades | 65 blades | 72 blades | 79 blades | 89 blades |
Optional : | |||||
Side moving type
Wood Chipper
Introduction:
1. Processing log diameter : 50-300mm
2. End chips size :20-40mm
3. Production capacity : 7-15tons/hour
4. We can also do production line design as customer needs
Technical Data
| Model | SH216 | SH218 |
| Feeding Inlet | 240*540mm | 310*680mm |
| Rotor Diameter | 650mm | 800mm |
| Blade Quantity | 2 or 3 | 2 or 3 |
| Motor Power | 55KW | 110KW |
| In Feed Conveyor | 6000mm | 6000mm |
| Out Feed Conveyor | 10000mm | 10000mm |
| Capacity | 7-10T/H | 9-13T/H |
| Weight | 4070KG | 7500KG |
