Wood Saw Machine, Wood Boards Edger Saw Machines with auto feeding, Slab Saw
Twin Blades Wood Board Edger/border cutting saw machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
4. The saw blade moves with infrared light and moves at the same time .
5. Feeding: frequency speed adjustable auto feeding
6. Max. sawing width: 600mm or as customer needs
7. Max. sawing thickness : 70mm
Technical data :
| Technical parameters | EG600A |
| cutting max. width | 600mm |
| cutting min. width | 50mm |
| sawn max. thickness | 70mm |
| sawn min. thickness | 10mm |
| Blade | 2*350mm |
| Feeding method | Automatic feeding conveyor |
| Feed Rate | 20-25m/ minute |
| Power | 15KW electric motor |
| Positioning | Infrared line |
| Machine weight | 800KG |
|
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable |
|

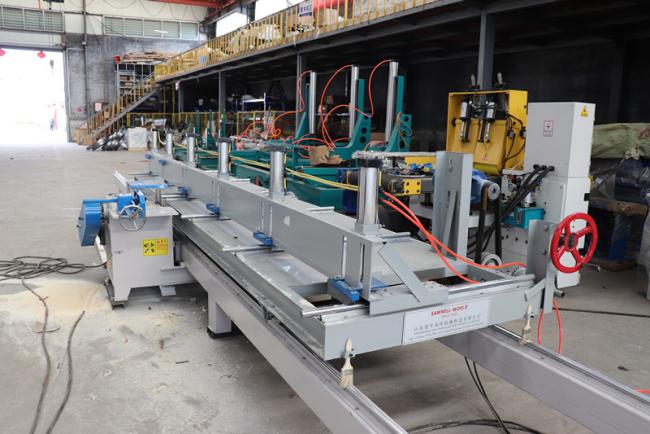

Photos:
Related Products
Wood Board Edger Saw for big size planks
Multi Blades Rip Saw/Woob Boards Edger Saw
Introduction:
- with Infrared positioning
- for board edges cutting
- sawing planks into small pcs
- easy usage, no installation
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 230mm | 230mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
