Hydraulic timber cutting automatic wood band sawmill machine, big Industrial Band Saw

Price Negotiable

Price: US $11,000 - 39,000 / Set

MOQ: 1 SET

Delivery Time: within 20 days

Brand: SH

Product Description

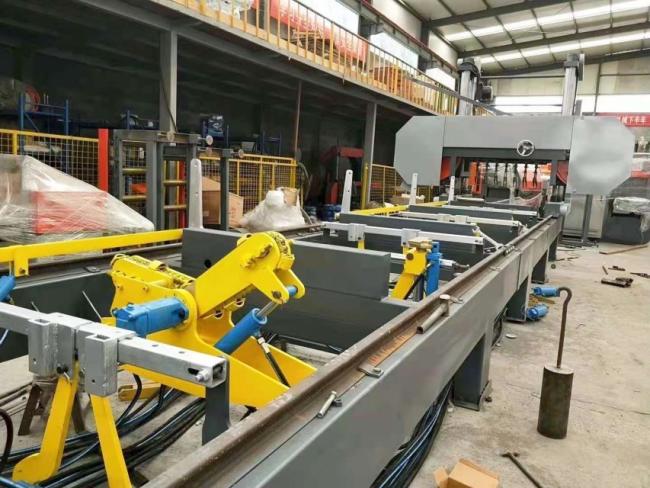

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill

Introduction:

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control .
Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .
Max. sawing log diameter/width : 1500mm
Saw wheel diameter and width : 1070mm &125mm
Main motor power : 45KW

Technical Data:

Model	MJH1200E	MJH1500E
Max Sawing Wood Diameter	1200mm	1500mm
Saw Wheel Diameter	1000mm	1070mm
Max Sawing Wood Thickness	400mm	400mm
Standard Sawing Wood Length	4500mm	4500mm
Electric Motor Power	37kw	45kw
Up/Down Electric Motor	2.2kw	2.2kw
Forward/Backward Electric Motor	3kw	3kw
Band Saw Blade Width	125-150mm	125-150mm
Band Saw Blade Tension	Electric
Machine Length	7000mm	7000mm
Weight	7000kg	8500kg

Big Width Wood Board Edger Saw
1.Fit for wider and thicker board edges cutting
2.Electrical wood feeding
3.Pneumatic wood grasp
Technical specifications:

Model	BT300-6-3500	BT250-10-3500	BT250-15-3500	BT250-15-3500
Sawing max. thickness	10-300mm	10-250mm	10-250mm	10-100mm
Sawing max. length	3500mm	3500mm	3500mm	3500mm
Sawing max. width	600mm	1000mm	1500mm	600mm
Circular blade dia.	405mm	355mm	355mm	355mm
Main motor power	11KW*2	11KW*2	11KW*2	11KW
Rail length	7000mm	7000mm	7000mm	7000mm
Grasp wood type	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Feeding	Electrical	Electrical	Electrical	Electrical
Size setting	Manual	Manual	Manual	Manual
