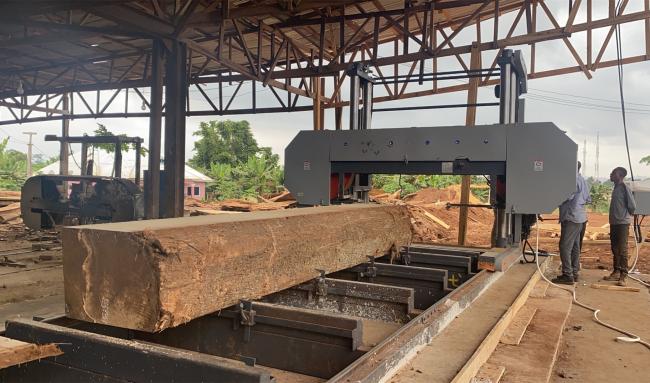

MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet
MJ2000 Heavy Duty Sawmill Machine, Horizontal Cutting Big Wood Saw Machine with control cabinet
Heavy Duty Large Size Horizontal Band Sawmill
1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .
2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.
3. Diesel engine powered big sawmill is workable
4.Working video link : https://youtu.be/f6KLyUnMFf0
Structure Features:
1.High quality parts, SKF bearings from Sweden
2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .
Technical specifications:
| Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
| Saw wheel diameter (MM) | 1070 | 1070 | 1070 | 1070 |
| Sawing thickness max (MM) | 350 | 350 | 400 | 400 |
| Max Sawing wood Length (MM) | 6000 | 6000 | 6000 | 6000 |
| Main Motor Power (KW) | 30 | 37 | 45 | 55 |
| Blade length(mm) | 7900 | 8600 | 9700 | 10500 |
| Total Weight (KG) | 3800 | 4500 | 5000 | 5500 |
|
||||
Diesel Engine Powered band Saw
Technical specifications:
| Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
| Saw wheel diameter (MM) | 1070 | 1070 | 1070 | 11070 |
| Sawing thickness max (MM) | 350 | 350 | 400 | 400 |
| Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
| Diesel engine power (HP) | 80 | 80 | 80 | 80 |
| Blade length (mm) | 7900 | 8600 | 9700 | 10500 |
| Total Weight (KG) | 3800 | 4500 | 5000 | 5500 |
|
||||
