vertical band sawmill with CNC carriage automatic wheel wood cutting saw machine
Price:
US $5,000 - 50,000 / Set
MOQ:
1 SET
Delivery Time:
within 15 days
Brand:
SH
Product Description

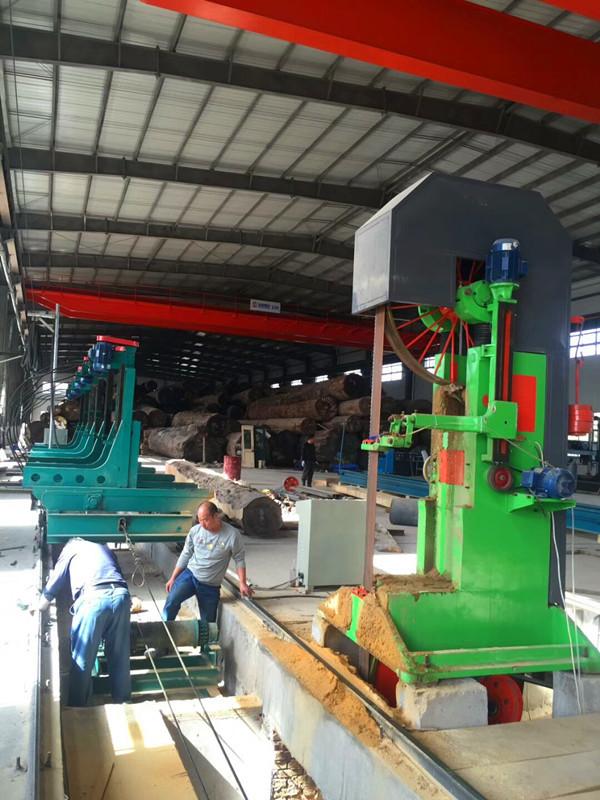

Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
| Technical Parameter | MJ3212-Z5000 | MJ3212-Z3000 | MJ3310-Z5000 | MJ3310-Z3000 |
| Saw Wheel Diameter (MM) | 1250 | 1250 | 1070 | 1000 |
| Saw Wheel Speed RPM | 650 | 650 | 650 | 650 |
| Saw Blade Length (MM) | 8600 | 8600 | 7400 | 7400 |
| Saw Blade Width(MM) | 150 | 150 | 150 | 150 |
| Saw Clip Movement Motor( KW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Saw Wheel Movement Motor( KW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Main Motor Power( KW) | 37 | 37 | 30 | 30 |
| Carriage Clip Stake Quantity | 4 | 4 | 4 | 3 |
| Carriage Wheel Quantity | 3 | 3 | 3 | 2 |
| forward and backward | Electric | Electric | Electric | Electric |
| Sawing Thickness Setting | Electric | Electric | Electric | Electric |
| Max Sawing Wood Diameter(MM) | 1200 | 1200 | 1000 | 1000 |
| Max Sawing Wood Length(MM) | 6000 | 4000 | 6000 | 4000 |
| Track Length(MM) | 16000 | 12000 | 16000 | 12000 |
| Weight (KG) | 7200 | 6500 | 4900 | 4200 |
