Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting
Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Technical Specifications:
| Technical data | MJ3310-DD3000 | MJ3310-DD5000 |
| Saw wheel diameter | 1070mm | 1070mm |
| Maximum sawing log diameter | 1000mm | 1000mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 30KW | 30KW |
| Saw blade L*W*T | 7400x150x1.05mm | 6850x125x1.05mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Manual | Manual |
| Carriage walking/advance | Electric | Electric |
| Setting sawn size | Electric | Electric |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 4500kgs | 6000kgs |
| Technical data | MJ3310-ZD3000 | MJ3310-ZD5000 |
| Saw wheel diameter | 1070mm | 1070mm |
| Maximum sawing log diameter | 1000mm | 1000mm |
| Maximum sawing log length | 4meters | 6meters |
| Main motor | 30KW | 30KW |
| Saw blade L*W*T | 7400x150x1.05mm | 7400x150x1.05mm |
| Carriage clip stake quantity | 3sets | 4sets |
| Wood grasp mode | Electric | Electric |
| Carriage walking/advance | Frequency converter | Frequency converter |
| Setting sawn size | PLC touching screen | PLC touching screen |
| Carriage length | 3meters | 5meters |
| Rail length | 10meters | 18meters |
| Weight | 4500kgs | 6000kgs |

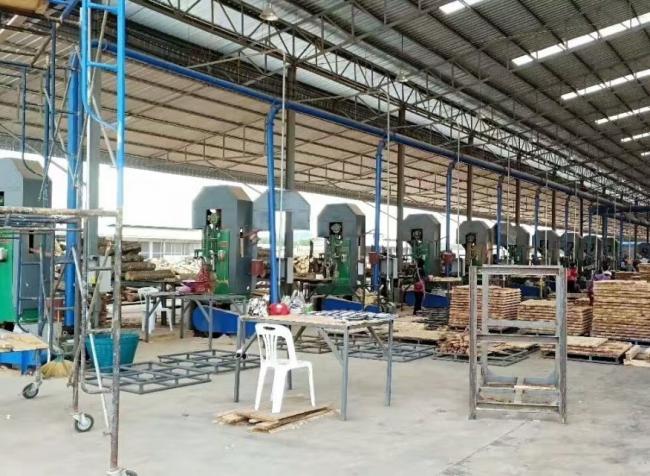

Feedback from Users
Optional parts - log loading deck
Optional parts - Board roller conveyor
The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
- It is simple installation,easy operation,labor saving,and high productivity.
- This machine can be drived by either electric motor or diesel engine.
- It is widely used by the timber processing enterprises in the virgin forests areas.
Diesel Engine Powered Horizontal Portable Band Sawmill
|
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
|
Sawing Wood width max. |
700MM | 1000mm | 1300mm | 1600mm |
|
Saw Wheel Diameter(MM) |
600mm | 700mm | 700mm | 700mm |
|
Sawing Wood Thicknes |
10-200mm | 10-300mm | 10-300mm | 10-300mm |
|
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
|
Band Saw Blade Length |
5500mm | 6100mm | 6600mm | 7100mm |
|
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Optional Parts: Extend sawmill track
