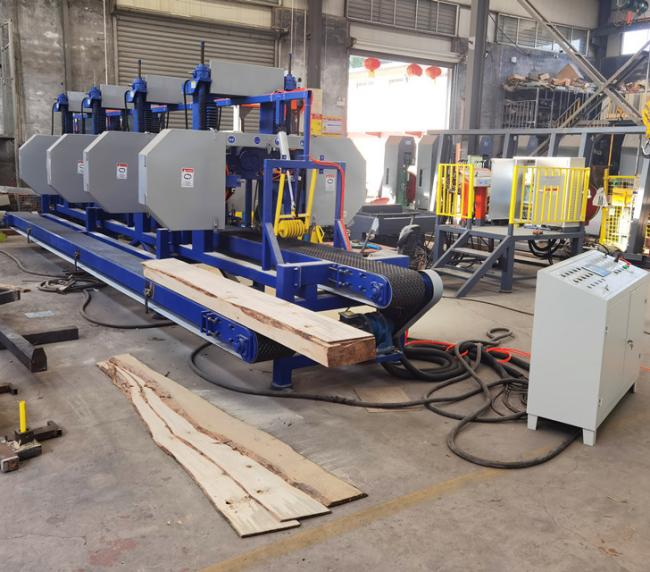

Multiple Heads Horizontal Band Resaw Machine 2-6 Heads 300mm Width 15kw Motor Wood Bandsaw Mill
Multi-head Horizontal Resaws come in a variety of configurations to best meet your needs. Different models multi-cut resaws are available which offer PLC touch screen cutting accuracy, increased yield, ease-of-operation, reliability, and versatility make the broad range of multi-cut band resaws a profitable investment for start-up businesses and high production operations.
Ideal for companies that need an affordable multi-head resaw, that can grow with your business.
Expand from one to up to six cutting heads with the 700mm diameter saw wheel large capacity resaw.
High-end, modular multi-head horizontal band resaw with optional merry-go-round, and 12" x 12" cant capacity. Configurable from one to six heads.
Optional wider processing width from 300mm to 400mm or 500 is available.
- Available with 1 to 6 cutting heads
- Touch screen control for precise sawing thickness settings
- Variable frequency speed adjustable feeding system
| Specification | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
|---|---|---|---|---|---|
| Sawing Width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum Wood Thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum Wood Height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band Wheel Diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw Motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Machine Length | 3500mm | 4500mm | 5800mm | 8500mm | 11000mm |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding System | Variable frequency speed adjustable conveyor | ||||
| Operation | Touch screen auto setworks for sawn thickness | ||||
