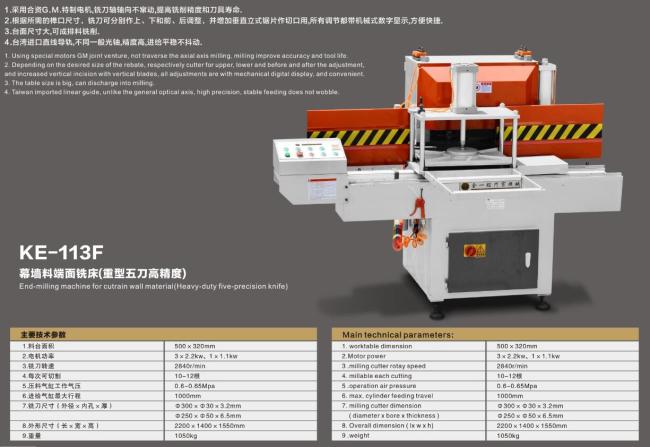

Free Shipping KM-113F End-milling machine for cutrain wall material (Heavy-duty five-precision knife)
1) Adopted particular structure of triangular cylindrical sliding track, for high strength and rigidity
2) Move smoothly, stepless speed adjusting available, no creeping, the blade retract quickly, save non-production time
3) Operate easily, adjust size accurately, milling precision less than or equal to 0.1mm
4) With 4 pieces of milling cutters to mill out right workpiece one time
5) 4 pieces of milling cutters are installed in axes of 3 main exectromotors, can adjust the height to fit for aluminum material
6) The workbench is large enough to mill 10 ~ 12 pieces profiles one time, high efficiency
7) Additionally can add one cutting blade as per the customer's request
8) 3 electromotors star up independently, could be selected as per workpieces' requirement
9) 38-90 series aluminum profile, heat insulation material and curtain wall profile could be milled
10) Pneumatic spray mist blade lubrication coolant systemMain technique parameters
Main Technical Parameter
| 1. | Working air pressure | 0.6-0.8Mpa |
| 2. | Air consumption | 200 L/min |
| 3. | Main motor power | 2.2Kw×3 |
| 4. | Main motor rotation speed | 2840 rpm |
| 5. | Milling cutter dimension | Φ250×Φ50×6.5mm |
| 6. | Worktable dimension | 500x320mm |
| 7. | Milling stroke | 950mm |
| 11. | Overall dimension (L×W×H) | 2280x1040x1640mm |
| 12. | Weight | 1300Kg |
in wooden case
