Professional 0.6KV / 1KV Aerial Bundled Cables , Quadruplex Service Drop Cable
Price:
0.1-10.99USD/m
MOQ:
0.5KM
Delivery Time:
15Days or More
Brand:
SHANCABLE
Product Description

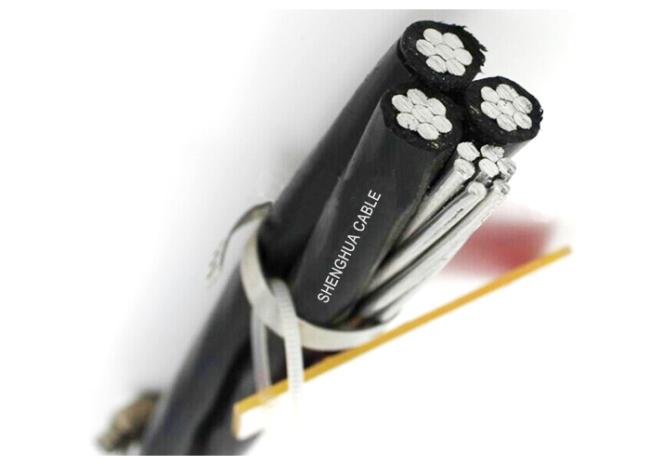

Professional 0.6KV / 1KV Aerial Bundled Cables , Quadruplex Service Drop Cable
Packaging & Delivery
| Packaging Details: | Overhead XLPE insulation ABC aerial bundled cable Wooden Drum |
|---|---|
| Delivery Detail: | 15 days |
Overhead XLPE insulation ABC aerial bundled cable
1. Applications
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.
2. Standards
QUADRUPLEX SERVICE DROP-ALUMINIUM CONDUCTOR
ASTM B-231,B-232 and B-399, ICEA S -79-474
| Code Name | Phase Conductors | Bare Natural | Weight | Ampacity | ||||||
| Size & No. of | Insulation | Nominal Diamerer | Size & No. of | Rated Stength | XLPE | Aluminum | Total | |||
| Wires | Thickness | Bare | OD | |||||||
| mm | mm | mm | Wires | kg | kg/km | kg/km | kg/km | A | ||
| AAC | ||||||||||
| Quarter | 6-Solid | 1.143 | 4.115 | 6.401 | 6-7 | 255.371 | 63 | 149 | 211 | 78 |
| Clydesdale | 4-Solid | 1.143 | 5.182 | 7.468 | 4-7 | 399.613 | 79 | 237 | 315 | 103 |
| Pinto | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 399.613 | 89 | 237 | 326 | 136 |
| Mustang | 2-7 | 1.143 | 7.417 | 9.703 | 2-7 | 612.347 | 115 | 377 | 491 | 158 |
| Shire | 1-19 | 1.524 | 8.433 | 11.481 | 1-19 | 743.888 | 171 | 475 | 646 | 158 |
| Libyan | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 902.644 | 192 | 598 | 790 | 182 |
| Criollo | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-19 | 902.644 | 193 | 598 | 793 | 182 |
| Orioff | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 1138.511 | 217 | 754 | 973 | 210 |
| Percheron | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-19 | 1138.511 | 220 | 754 | 976 | 210 |
| Mongolian | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 1378.914 | 249 | 951 | 1199 | 242 |
| Hanoverian | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-19 | 1378.914 | 251 | 951 | 1204 | 242 |
| Singlefoot | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-7 | 1737.250 | 286 | 1199 | 1485 | 279 |
| Oldenburg | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-19 | 1737.250 | 289 | 1199 | 1490 | 279 |
