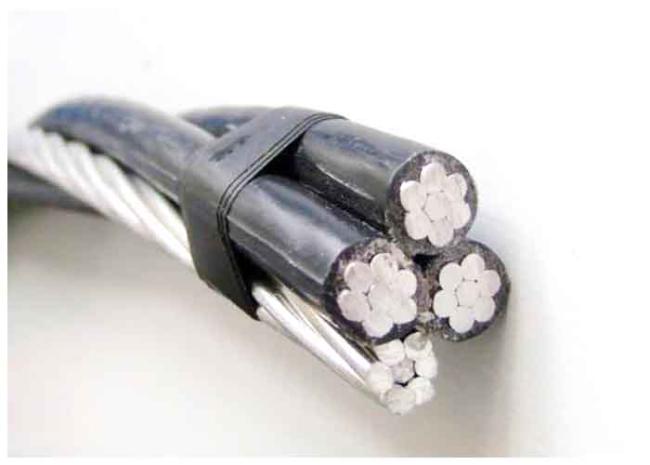

Al / Xlpe Insulated Aerial Bunched Aerial Power Cable AAC Conductor
Description:3 Phase conductors + 1 Messenger conductor + 1 Street lighting conductor
The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.
Construction
- Conductor:
a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.
b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded c)Street Lighting- The street lighting conductors shall be of H68 condition aluminium conductor and compacted circular stranded..
- Insulation:
The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.
STANDARD TS 11654
AER
| Insulated Wires | Porter | Completed cable | |||||||||||||
| Number of | Main Distribution Line | Str. Lighting | |||||||||||||
| Conductor Cross | Number | Number of | Diameter of | Resistance | Current | Number | Current | Diameter of | Min. Tensile | Resistance | Approx. | Approximate | |||
| Section | &Cross- | wire | Wires | at 20℃ | Carrying | &Cross- | Carrying | Neutral/Mes | Strenght | at 20℃ | Average | weight | |||
| section | Capacity at | section | Capacity at | senger Wire | Limite | Diameter | |||||||||
| 30℃ | 30℃ | ||||||||||||||
| mm² | mm² | PCS | mm | ohm/km | A | mm² | A | mm | kN | ohm/km | mm | kg/km | |||
| 1x16+25 | 1x16 | 1 | 4.4 | 1.91 | 75 | - | - | 5.9 | 7.4 | 1.380 | 15 | 140 | |||
| 1x25+35 | 1x25 | 7 | 5.9 | 1.20 | 100 | - | - | 6.9 | 10.3 | 0.986 | 17 | 200 | |||
| 1x35+50 | 1x35 | 7 | 6.9 | 0.868 | 125 | - | - | 8.1 | 14.2 | 0.720 | 20 | 275 | |||
| 3x16+25 | 3x16 | 7 | 4.4 | 1.91 | 70 | - | - | 5.9 | 7.4 | 1.380 | 22 | 275 | |||
| 3x25+35 | 3x25 | 7 | 5.9 | 1.20 | 90 | - | - | 6.9 | 10.3 | 0.986 | 26 | 400 | |||
| 3x35+50 | 3x35 | 7 | 6.9 | 0.868 | 115 | - | - | 8.1 | 14.2 | 0.720 | 30 | 575 | |||
| 3x50+70 | 3x50 | 7 | 8.1 | 0.641 | 140 | - | - | 9.6 | 20.6 | 0.493 | 35 | 750 | |||
| 3x70+95 | 3x70 | 7 | 9.6 | 0.443 | 180 | - | - | 11.4 | 27.9 | 0.363 | 41 | 1050 | |||
| 3x120+95 | 3x120 | 19 | 12.8 | 0.253 | 250 | - | - | 11.4 | 27.9 | 0.363 | 47 | 1550 | |||
| 4x16+25 | 4x16 | 1 | 4.4 | 1.91 | 70 | - | - | 5.9 | 7.4 | 1.380 | 24 | 375 | |||
| 4x25+35 | 4x25 | 7 | 5.9 | 0.868 | 90 | - | - | 6.9 | 10.3 | 0.986 | 28 | 550 | |||
| 4x35+50 | 4x35 | 7 | 6.9 | 0.868 | 115 | - | - | 8.1 | 14.2 | 0.720 | 32 | 750 | |||
| 4x50+70 | 4x50 | 7 | 8.1 | 0.641 | 140 | - | - | 9.6 | 20.6 | 0.493 | 38 | 1000 | |||
| 4x70+95 | 4x70 | 7 | 9.6 | 0.443 | 180 | - | - | 11.4 | 27.9 | 0.363 | 45 | 1350 | |||
| 1x16+25 | - | - | - | - | - | 1x16 | 75 | 5.9 | 7.4 | 1.380 | 14 | 140 | |||
| 1x16+1x16+25 | 1x16 | 1 | 4.4 | 1.91 | 70 | 1x16 | 60 | 5.9 | 7.4 | 1.380 | 15 | 225 | |||
| 3x16+1x16+25 | 3x16 | 1 | 4.4 | 1.91 | 60 | 1x16 | 60 | 5.9 | 7.4 | 1.380 | 22 | 350 | |||
| 3x25+1x16+35 | 3x25 | 7 | 5.9 | 1.20 | 80 | 1x16 | 60 | 6.9 | 10.3 | 0.986 | 26 | 475 | |||
| 3x35+1x16+35 | 3x35 | 7 | 6.9 | 0.868 | 95 | 1x16 | 60 | 8.1 | 14.2 | 0.720 | 30 | 625 | |||
| 3x50+1x16+70 | 3x50 | 7 | 8.1 | 0.641 | 120 | 1x16 | 60 | 9.6 | 20.6 | 0.493 | 35 | 800 | |||
| 3x70+1x16+95 | 3x70 | 7 | 9.6 | 0.443 | 150 | 1x16 | 60 | 11.4 | 27.9 | 0.363 | 41 | 1100 | |||
| 4x16+1x16+25 | 4x16 | 1 | 4.4 | 1.91 | 60 | 1x16 | 60 | 5.9 | 7.4 | 1.380 | 25 | 450 | |||
| 4x25+1x16+35 | 4x25 | 7 | 5.9 | 1.20 | 80 | 1x16 | 60 | 6.9 | 10.3 | 0.986 | 30 | 610 | |||
| 4x35+1x16+50 | 4x35 | 7 | 6.9 | 0.868 | 95 | 1x16 | 60 | 8.1 | 14.2 | 0.720 | 34 | 800 | |||
| 4x50+1x16+70 | 4x50 | 7 | 8.1 | 0.641 | 120 | 1x16 | 60 | 9.6 | 20.6 | 0.493 | 40 | 1060 | |||
| 4x70+1x16+95 | 4x70 | 7 | 9.6 | 0.443 | 180 | 1x16 | 60 | 11.4 | 27.9 | 0.363 | 47 | 1420 | |||
