High Voltage Bare Aluminum Conductor Steel Reinforced For Power Station
Dog / Rabbit Bare Aluminium Conductor Of Electricity , 132KV Transmission Conductor
Constructure:

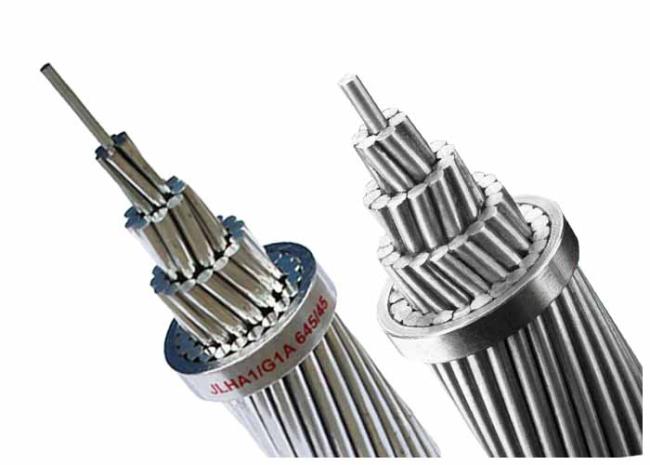

Aluminum alloy wires, concentrically stranded with steel core. Core wire for ACSR is available with class A, B, or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Application:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Standards:
All the products can perfectly meet requests of different standards. we can design and manufacture special cables according to the required standards of customers, such as: GB, IEC, BS, ASTM, JIS, DIN CRS.
| Type | Description | No. of Wire |
Section Area (mm2) |
| AAC | All Aluminum Conductor | 7~127 | 16~1500 |
| AAAC | All Aluminum Alloy Conductor | 7~91 | 17~1300 |
| ACSR |
Aluminum Conductors Steel Reinforced |
7~103 | 16~1250 |
| AACSR |
Aluminum Alloy Conductors Steel Reinforced |
7~103 | 16~1250 |
| ACAR/AW |
Aluminum Conductors Aluminum Alloy Reinforced |
7~103 | 16~1250 |
| ACSW/S |
Aluminum Conductors Aluminum Clad Steel Wire/Strand |
7~103 | 16~1250 |
| GSW | Galvanized Steel Wire | 3/2.64~37/4.55 | 16.41~765.99 |
ACSR Conductor technical data
| BS215 PART2 | ||||||||||||
| Code | Cross | No.of wires | Wire daimeter | Diameter | Mass per | Rated | Maximum | |||||
| name | section | unit length | strength | DC resistance | ||||||||
| Al | Steel | Total | Al | Steel | Core | Cond. | at 20°C | |||||
| mm2 | mm2 | mm2 | Al | Steel | mm | mm | mm | mm | kg/km | kN | ohm/km | |
| MOLE | 10.6 | 1.77 | 12.4 | 6 | 1 | 1.5 | 1.5 | 1.5 | 4.5 | 42.8 | 4.14 | 2.7027 |
| SQUIRREL | 21 | 3.5 | 24.5 | 6 | 1 | 2.11 | 2.11 | 2.11 | 6.33 | 84.7 | 7.87 | 1.3659 |
| GOPHEL | 26.2 | 4.37 | 30.6 | 6 | 1 | 2.36 | 2.36 | 2.36 | 7.08 | 106 | 9.58 | 1.0919 |
| WEASEL | 31.6 | 5.27 | 36.9 | 6 | 1 | 2.59 | 2.59 | 2.59 | 7.77 | 127.6 | 11.38 | 0.9065 |
| FOX | 36.7 | 6.11 | 42.8 | 6 | 1 | 2.79 | 2.79 | 2.79 | 8.37 | 148.1 | 13.21 | 0.7812 |
| FERRET | 42.4 | 7.07 | 49.5 | 6 | 1 | 3 | 3 | 3 | 9 | 171.2 | 15.27 | 0.6757 |
| RABBIT | 52.9 | 8.81 | 61.7 | 6 | 1 | 3.35 | 3.35 | 3.35 | 10.1 | 213.5 | 18.42 | 0.5419 |
| MINIK | 63.1 | 10.5 | 73.6 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11 | 254.9 | 21.67 | 0.454 |
| SKUNK | 63.2 | 36.9 | 100.1 | 12 | 7 | 2.59 | 2.59 | 7.77 | 13 | 463 | 52.79 | 0.4568 |
| BEAVER | 75 | 12.5 | 87.5 | 6 | 1 | 3.99 | 3.99 | 3.99 | 12 | 302.9 | 25.76 | 0.382 |
| HORSE | 73.4 | 42.8 | 116.2 | 12 | 7 | 2.79 | 2.79 | 8.37 | 14 | 537.3 | 61.26 | 0.3936 |
| RACOON | 78.8 | 13.1 | 92 | 6 | 1 | 4.09 | 4.09 | 4.09 | 12.3 | 318.3 | 27.06 | 0.3635 |
| OTTER | 83.9 | 14 | 97.9 | 6 | 1 | 4.22 | 4.22 | 4.22 | 12.7 | 338.8 | 28.81 | 0.3415 |
| CAT | 95.4 | 15.9 | 111.3 | 6 | 1 | 4.5 | 4.5 | 4.5 | 13.5 | 385.3 | 32.76 | 0.3003 |
| HARE | 105 | 17.5 | 122.5 | 6 | 1 | 4.72 | 4.72 | 4.72 | 14.2 | 423.8 | 36.04 | 0.273 |
| DOG | 105 | 13.6 | 118.5 | 6 | 7 | 4.72 | 1.57 | 4.71 | 14.2 | 394 | 32.65 | 0.2733 |
| COYOTE | 131.7 | 20.1 | 151.8 | 26 | 7 | 2.54 | 1.91 | 5.73 | 15.9 | 520.7 | 45.86 | 0.2192 |
| COUGAR | 131.5 | 7.31 | 138.8 | 18 | 1 | 3.05 | 3.05 | 3.05 | 15.3 | 418.8 | 29.74 | 0.2188 |
| TIGER | 131.2 | 30.6 | 161.9 | 30 | 7 | 2.36 | 2.36 | 7.08 | 16.5 | 602.2 | 57.87 | 0.2202 |
| WOLF | 158.1 | 36.9 | 194.9 | 30 | 7 | 2.59 | 2.59 | 7.77 | 18.1 | 725.3 | 68.91 | 0.1829 |
| DINGO | 158.7 | 8.81 | 167.5 | 18 | 1 | 3.35 | 3.35 | 3.35 | 16.8 | 505.2 | 35.87 | 0.1814 |
| LYNX | 183.4 | 42.8 | 226.2 | 30 | 7 | 2.79 | 2.79 | 8.37 | 19.5 | 841.6 | 79.97 | 0.1576 |
| CARACAL | 184.2 | 10.2 | 194.5 | 18 | 1 | 3.61 | 3.61 | 3.61 | 18.1 | 586.7 | 40.74 | 0.1562 |
| PANTHER | 212.1 | 49.5 | 261.5 | 30 | 7 | 3 | 3 | 9 | 21 | 973.1 | 92.46 | 0.1363 |
| JAGUAR | 210.6 | 11.7 | 222.3 | 18 | 1 | 3.86 | 3.86 | 3.86 | 19.3 | 670.8 | 46.57 | 0.1366 |
| LION | 238.3 | 55.6 | 293.9 | 30 | 7 | 3.18 | 3.18 | 9.54 | 22.3 | 1093.4 | 100.47 | 0.1213 |
| BEAR | 264.4 | 61.7 | 326.1 | 30 | 7 | 3.35 | 3.35 | 10.1 | 23.5 | 1213.4 | 111.5 | 0.1093 |
| GOAT | 324.3 | 75.7 | 400 | 30 | 7 | 3.71 | 3.71 | 11.1 | 26 | 1488.2 | 135.13 | 0.0891 |
| SHEEP | 375.1 | 87.5 | 462.6 | 30 | 7 | 3.99 | 3.99 | 12 | 27.9 | 1721.3 | 156.3 | 0.0771 |
| ANTELOPE | 374.1 | 48.5 | 422.6 | 54 | 7 | 2.97 | 2.97 | 8.91 | 26.7 | 1413.8 | 118.88 | 0.0773 |
| BISON | 381.7 | 49.5 | 431.2 | 54 | 7 | 3 | 3 | 9 | 27 | 1442.5 | 121.3 | 0.0758 |
| DEER | 429.6 | 100.2 | 529.8 | 30 | 7 | 4.27 | 4.27 | 12.8 | 29.9 | 1971.4 | 179 | 0.0673 |
| ZEBRA | 428.9 | 55.6 | 484.5 | 54 | 7 | 3.18 | 3.18 | 9.54 | 28.6 | 1620.8 | 131.92 | 0.0674 |
| ELK | 477.1 | 111.3 | 588.5 | 30 | 7 | 4.5 | 4.5 | 13.5 | 31.5 | 2189.5 | 198.8 | 0.0606 |
| CAMEL | 476 | 61.7 | 537.7 | 54 | 7 | 3.35 | 3.35 | 10.1 | 30.2 | 1798.8 | 146.4 | 0.0608 |
| MOOSE | 528.5 | 68.5 | 597 | 54 | 7 | 3.53 | 3.53 | 10.6 | 31.8 | |||
E,Package:In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.Welcome your request for any quotations!
