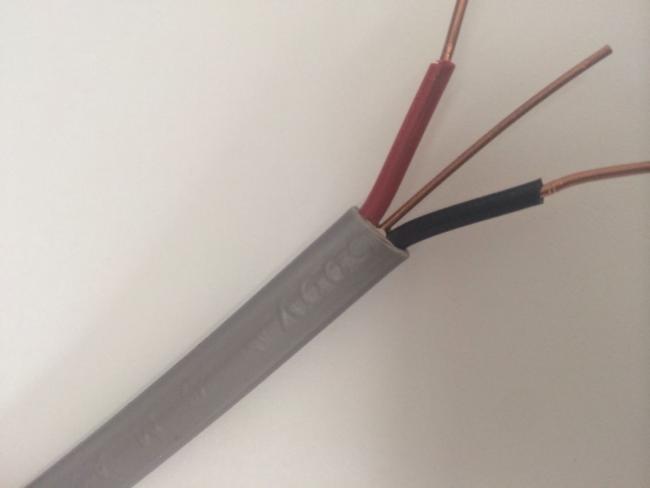

BS6004-2000 Flat Twin & Earth Electrical Cable Wire Grey 2* 2.5 + 1.5SQMM
BS6004-2000 Flat Twin & Earth Electrical Cable Wire 2x2.5+1.5SQMM With Best Price
TECHNICAL SPECIFICATION
| No. | Description | Unit | Data |
| 1 | Manufacturer's name | Shanghai shenghua Cable Group | |
| 2 | Produce Standard | / | BS 6004-2000 |
| 3 | Rated Voltage | V | 300/500 V |
| 4 | Nominal Construction | mm2 | 2*2.5+1.5 |
| 5 | Conductor | ||
| 5.1 conductor material | / | copper | |
| 5.2 Conuductor Construction | No./mm | 2*1.78 | |
| 5.3 Earth Construction | No./mm | 1*1.35 | |
| 6 | Insulation | ||
| 6.1 Insulation materail | / | PVC | |
| 6.2 Colour | / | brown and blue or brown and Yellow | |
| 6.3 Ridial thicknes of insulation | mm | 0.8 | |
| 6.4 Thickness of the thinnest point | mm | 0.62 | |
| 7 | Sheath | s | |
| 7.1 Sheath materail | / | PVC | |
| 7.2 colour | / | Grey | |
| 7.3 Ridial thicknes of sheath | mm | 1.0 | |
| 7.4 Thickness of the thinnest point | mm | 0.75 | |
| 8 | Mean overall dimensions | ||
| 8.1 Lower limit | mm | 5.2*9.8 | |
| 8.2 Upper limit | mm | 6.2*11.5 | |
| 9 | Max . DC Resistance of conductor at 20℃ | ohm/km | 7.41 |
| 10 | Minimum insulation resistance at 70℃ | MΩ·km | 0.010 |
| 11 | Packing Length | m/Roll | 100 |
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
