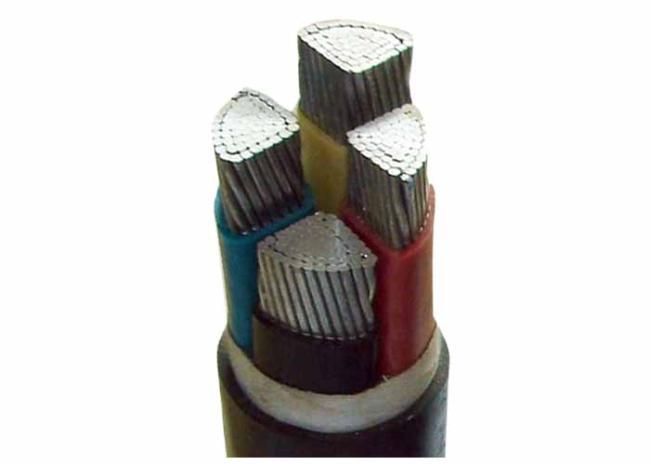

U-1000V 4 Core Aluminum Power Cable OEM CU / XLPE / PVC For Wiring Electrical
U-1000V 4 Core Aluminum Power Cable OEM CU / XLPE / PVC For Wiring Electrical
Construction
Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90 OC
Sheath: PVC or FR-PVC type ST to IEC 60502, black 2
Code Designation
YJ: XLPE insulation
V: PVC sheath
ZR: Flame resistant
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is
not allowed.
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/ T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA upon request
Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, CCC, KEMA and more others at request
Technical parameter:
| Cross section of conductor | Thickness of insulation | Thickness of Sheath | Approx.cable diameter | Max.resistance of conductor at 20 ℃ | Test Voltage(AC) |
| mm2 | mm | mm | mm | ohm/km | KV/5min |
| 4x2.5 | 0.8 | 1.8 | 12.7 | 7.41 | 3.5 |
| 4x4 | 1.0 | 1.8 | 14.9 | 4.61 | 3.5 |
| 4x6 | 1.0 | 1.8 | 16.1 | 3.08 | 3.5 |
| 4x10 | 1.0 | 1.8 | 19.2 | 1.83 | 3.5 |
| 4x16 | 1.0 | 1.8 | 21.7 | 1.15 | 3.5 |
| 4x25 | 1.2 | 1.8 | 25.9 | 0.73 | 3.5 |
| 4x35 | 1.1 | 1.8 | 28.7 | 0.524 | 3.5 |
| 4x50 | 1.4 | 1.9 | 30.4 | 0.387 | 3.5 |
| 4x70 | 1.6 | 2.1 | 33.9 | 0.268 | 3.5 |
| 4x95 | 1.6 | 2.2 | 39.7 | 0.193 | 3.5 |
| 4x120 | 1.8 | 2.4 | 44.2 | 0.153 | 3.5 |
| 4x150 | 2.0 | 2.0 | 48.7 | 0.124 | 3.5 |
| 4x185 | 2.2 | 2.7 | 53.5 | 0.0991 | 3.5 |
| 4x240 | 2.4 | 2.9 | 55.4 | 0.0754 | 3.5 |
| 4x300 | 2.6 | 3.0 | 61.0 | 0.060 | 3.5 |
| 4x400 | 2.6 | 3.2 | 70.0 | 0.0470 | 3.5 |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
