Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

XLPE insulated power cable are used as electricity power transmission lines which applies common circumstances as below:

• Mainly used for transmitting electricity power or used as control cable.
• Common operating temperature up to 90°C (emergency at 130°C and short circuit 250°C), both wet or dry location.
• Voltage rate 600/1Kv.
• Suits for main or secondary power lines of overhead (aerial) installations, direct burial underground or in dust.
• Cable trunking, cable tray, cable ladder, in tunnel or wire pipe and in switchgear and other complex operating environment.
• Works perfectly after metallic sheath (metal especially aluminum clad) or metal wire armored ( especially steel wire armored - SWA) when isolation of electromagnetic effects, anti-interference, anti-jamming and additional strength are required.

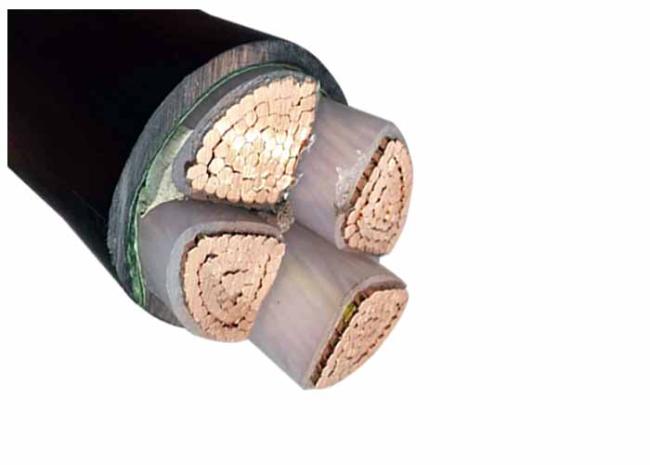

Construction

• Conductor: Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper/Aluminum Conductor.
• Insulation: XLPE (Cross-Linked Polyethylene).
• Sheath/Jacket: PVC or LSOH
• Insulation Color by default:
  • 1C – Natural
  • 2C – Brown & Blue
  • 3C – Brown, Black & Grey
  • 4C – Brown, Black, Grey & Blue
  • 2C+E – Brown, Blue + Green/Yellow
  • 3C+E – Brown, Black, Grey + Green/Yellow
  • 4C+E – Brown, Black, Grey, Blue + Green/Yellow
  • 5C & above – White Cores Printed With Number
• Sheath Colour: Black.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
